3 Port Solenoid Valves on Manifold with Manual Override

Name: 3 Port Solenoid Valves on Manifold with Manual Override
SKU: 07VB
Availability: InStock

Price range: $153.77 through $533.38 +gst

The 07VB solenoid valves on manifolds are multiple 07V valves mounted together for efficient air distribution.
They provide shared supply and exhaust channels, simplifying system layout and reducing tubing requirements.

SKU: 07VB Category: Solenoid valves

Available Options

SKU	Ways	Actuation	Function	Size	Stock	Price	Quantity
07VB000002	3/2	Solenoid / Manual Override	NC	2 Station	Availability: 2 in stock	$153.77 +gst	3 Port Solenoid Valves on Manifold with Manual Override quantity
07VB000004	3/2	Solenoid / Manual Override	NC	4 Station	Availability: 2 in stock	$284.36 +gst	3 Port Solenoid Valves on Manifold with Manual Override quantity
07VB000006	3/2	Solenoid / Manual Override	NC	6 Station	Availability: 2 in stock	$421.11 +gst	3 Port Solenoid Valves on Manifold with Manual Override quantity
07VB000008	3/2	Solenoid / Manual Override	NC	8 Station	Availability: 1 in stock	$533.38 +gst	3 Port Solenoid Valves on Manifold with Manual Override quantity

Technical Specifications:

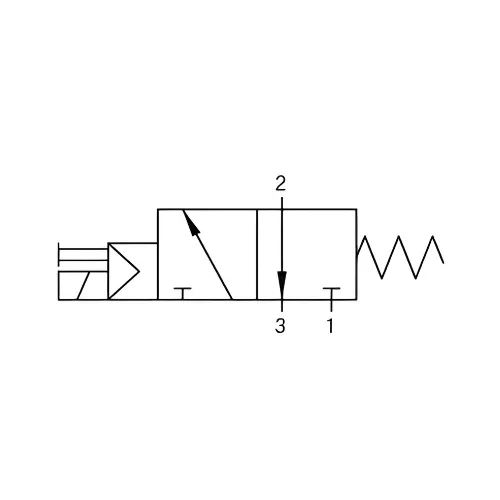

Configuration: 3/2 ways
Manifold type: Common supply and exhaust channels
Flow rate: 600–1200 Nl/min
Operating pressure: 1.5–8 bar
Material: Aluminium manifold block
Applications:
- Multi-valve automation systems
- Space-efficient pneumatic installations

Ways	3/2, 3/2, 3/2, 3/2
Actuation	Solenoid / Manual Override, Solenoid / Manual Override, Solenoid / Manual Override, Solenoid / Manual Override
Function	NC, NC, NC, NC
Size	2 Station, 4 Station, 6 Station, 8 Station
