Price range: $108.70 through $277.83 +gst

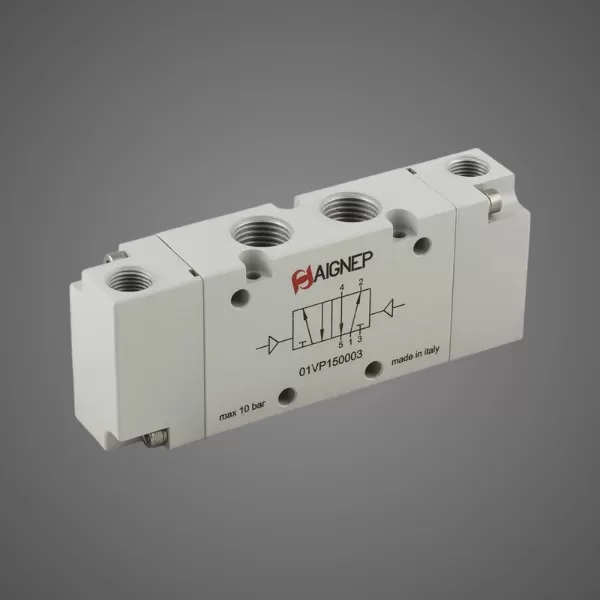

The 01VP air-operated valves use pneumatic control signals rather than electrical solenoids, making them suitable for systems requiring air logic or where electric actuation is restricted.
| Thumbnail | SKU | Ways | Actuation | Function | Size | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|

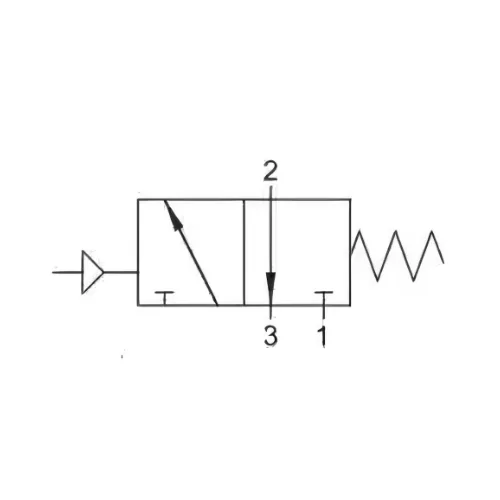

 | 01VP03NC02 | 3/2 | Pilot / Spring Return | NC | 1/8" | Availability: 3 in stock | $108.70 +gst | ||
| 01VP03NC03 | 3/2 | Pilot / Spring Return | NC | 1/4" | Availability: 2 in stock | $123.51 +gst | ||
| 01VP03NC05 | 3/2 | Pilot / Spring Return | NC | 1/2" | Availability: 1 in stock | $258.29 +gst | ||

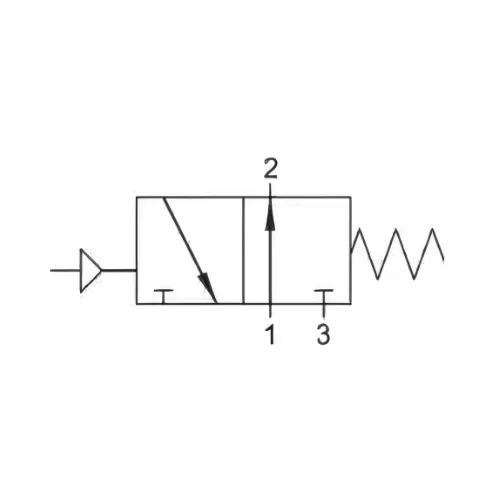

 | 01VP03NO03 | 3/2 | Pilot / Spring Return | NO | 1/4" | Out of stock | $137.26 +gst | ||

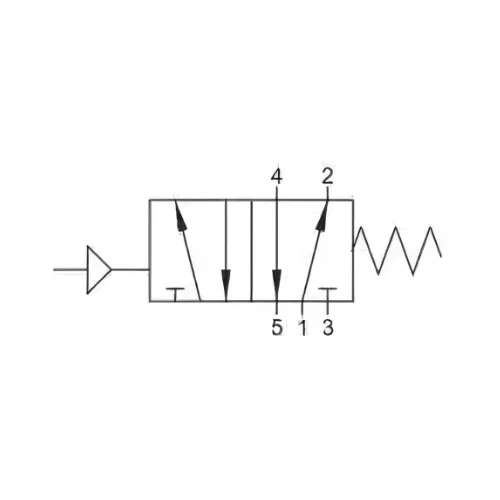

 | 01VP050002 | 5/2 | Pilot / Spring Return | - | 1/8" | Availability: 2 in stock | $158.49 +gst | ||
| 01VP050003 | 5/2 | Pilot / Spring Return | - | 1/4" | Availability: 2 in stock | $165.03 +gst | ||
| 01VP050005 | 5/2 | Pilot / Spring Return | - | 1/2" | Availability: 2 in stock | $277.83 +gst | ||

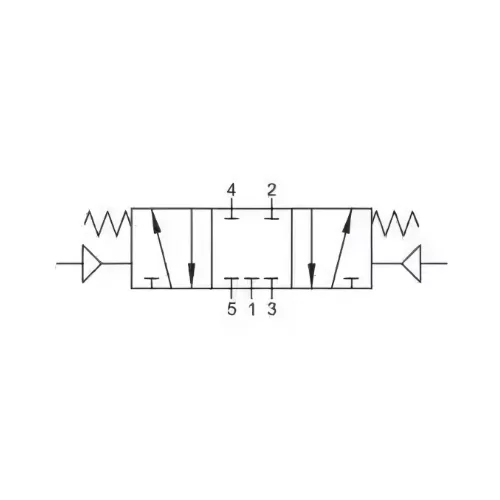

 | 01VP07CC02 | 5/3 | Pilot / Spring Return | All Ports Blocked | 1/8" | Out of stock | $185.72 +gst | ||
| 01VP07CC03 | 5/3 | Pilot / Spring Return | All Ports Blocked | 1/4" | Availability: 1 in stock | $185.72 +gst | ||

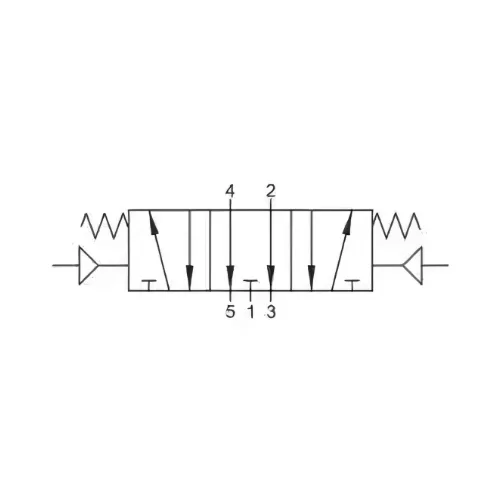

 | 01VP07OC03 | 5/3 | Pilot / Pilot (Bistable) | Open Centres | 1/4" | Availability: 3 in stock | $178.44 +gst | ||

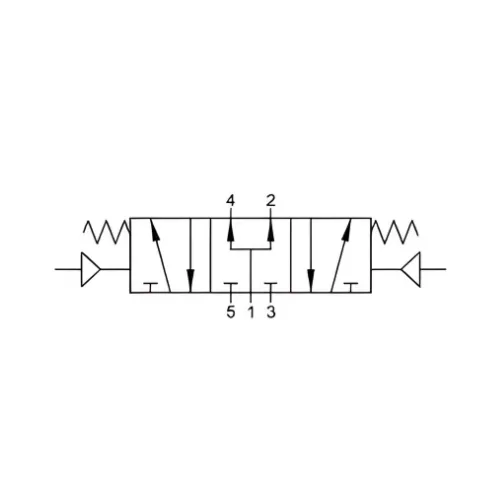

 | 01VP07PC03 | 5/3 | Pilot / Pilot (Bistable) | Pressure Centres | 1/4" | Availability: 2 in stock | $178.44 +gst | ||

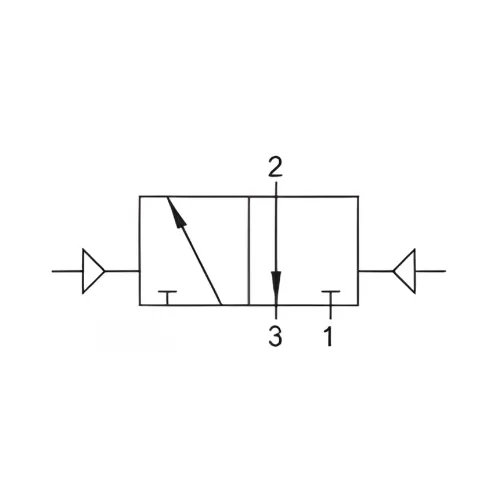

 | 01VP130002 | 3/2 | Pilot / Pilot (Bistable) | - | 1/8" | Availability: 3 in stock | $162.29 +gst | ||
| 01VP130003 | 3/2 | Pilot / Pilot (Bistable) | - | 1/4" | Availability: 7 in stock | $140.81 +gst | ||

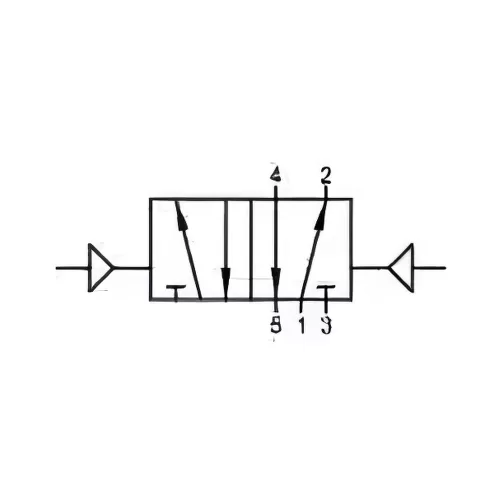

 | 01VP150002 | 5/2 | Pilot / Pilot (Bistable) | - | 1/8" | Availability: 2 in stock | $185.08 +gst | ||
| 01VP150003 | 5/2 | Pilot / Pilot (Bistable) | - | 1/4" | Availability: 2 in stock | $172.24 +gst | ||
| 01VP150005 | 5/2 | Pilot / Pilot (Bistable) | - | 1/2" | Availability: 1 in stock | $246.42 +gst |
Technical Specifications:
Port sizes: G1/8, G1/4, G3/8, G1/2
Flow rate: 740–5000 Nl/min (depending on size)
Operating pressure: 1.5–10 bar
Temperature range: -10°C to +60°C
Body: Aluminium
Spool: Nickel-plated aluminium
Seals: NBR
Actuation: Air pilot, spring return, or bistable versions
Applications: Air logic systems, pneumatic sequencing, explosion-proof environments
| Ways | 3/2, 3/2, 3/2, 3/2, 5/2, 5/2, 5/2, 5/3, 5/3, 5/3, 5/3, 3/2, 3/2, 5/2, 5/2, 5/2 |
|---|---|
| Actuation | Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Spring Return, Pilot / Pilot (Bistable), Pilot / Pilot (Bistable), Pilot / Pilot (Bistable), Pilot / Pilot (Bistable), Pilot / Pilot (Bistable), Pilot / Pilot (Bistable), Pilot / Pilot (Bistable) |
| Function | NC, NC, NC, NO, -, -, -, All Ports Blocked, All Ports Blocked, Open Centres, Pressure Centres, -, -, -, -, – |
| Size | 1/8", 1/4", 1/2", 1/4", 1/8", 1/4", 1/2", 1/8", 1/4", 1/4", 1/4", 1/8", 1/4", 1/8", 1/4", 1/2" |
