Price range: $74.80 through $110.02 +gst
The 05VB bases provide the interface and pneumatic connection for 05V series valves.
They are machined from aluminium and designed for either single-valve or modular manifold assembly.
| Thumbnail | SKU | Type | Size | Mounting | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|

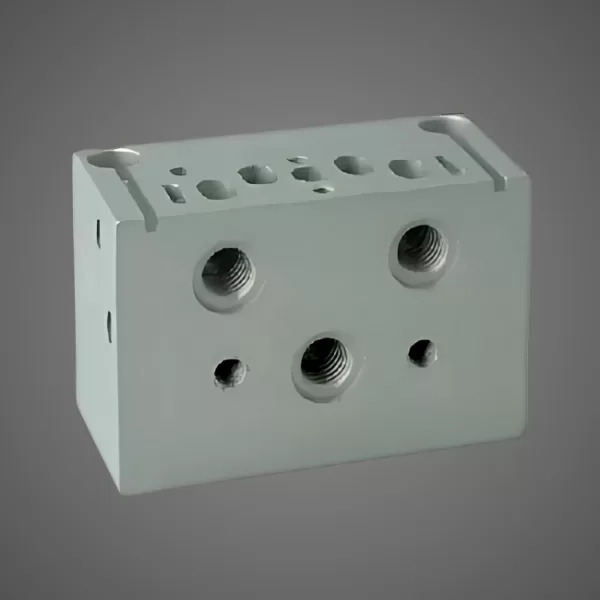

 | 05VB100000 | Front Base | 18 mm VDMA | Base | Availability: 2 in stock | $110.02 +gst | ||

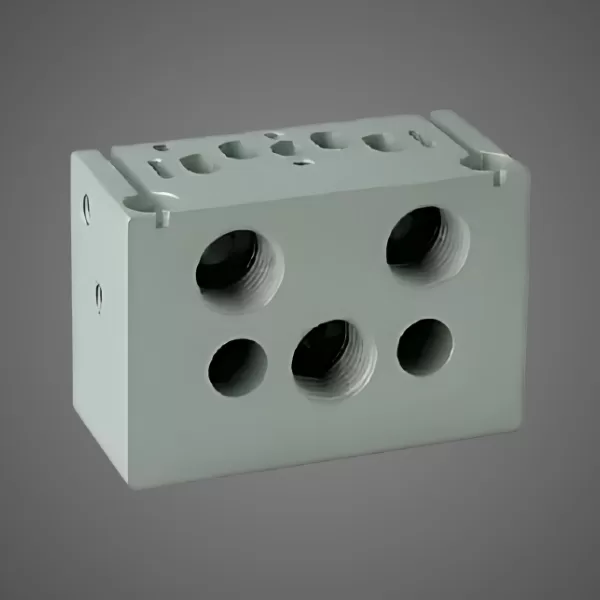

 | 05VB200000 | Rear Base | 18 mm VDMA | Base | Availability: 2 in stock | $105.57 +gst | ||

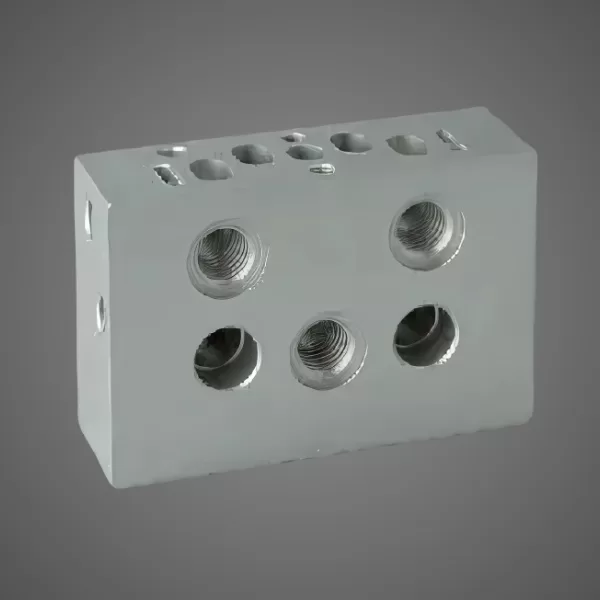

 | 05VB300000 | Intermediate Base | 18 mm VDMA | Base | Availability: 10 in stock | $74.80 +gst | ||

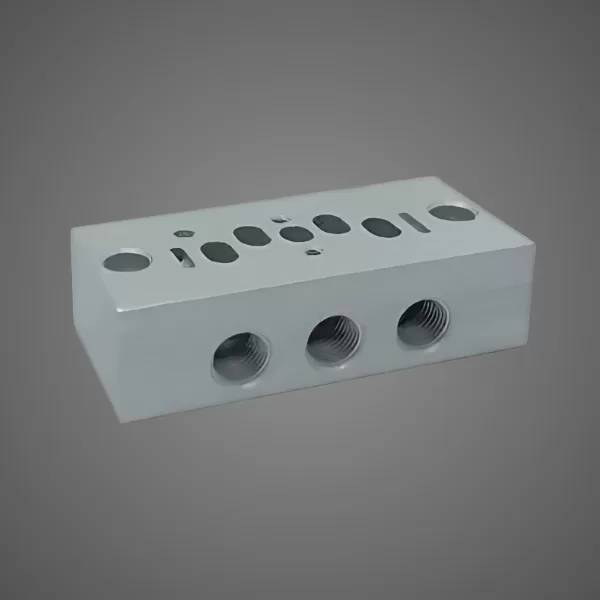

 | 05VB500000 | Individual Base | 18 mm VDMA | Base | Availability: 4 in stock | $78.72 +gst |
Technical Specifications:
Mounting interface: VDMA 18 mm
Material: Aluminium with integrated air channels
Port sizes: G1/8 or G1/4 (depending on configuration)
Temperature range: -10°C to +60°C
Applications:
Modular installations of 05V valves
Pneumatic control panels and manifolds
| Type | Front Base, Rear Base, Intermediate Base, Individual Base |
|---|---|
| Size | 18 mm VDMA, 18 mm VDMA, 18 mm VDMA, 18 mm VDMA |
| Mounting | Base, Base, Base, Base |
