Price range: $118.25 through $158.49 +gst

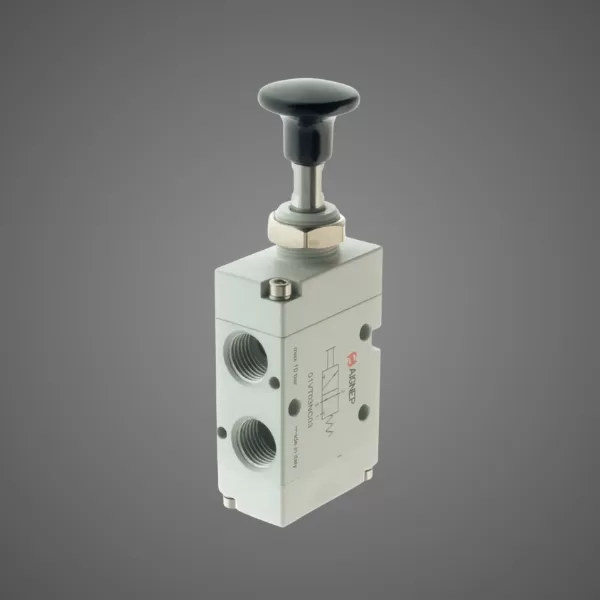

The 01VT push-button valves provide simple manual actuation for pneumatic systems. They are available as normally closed or normally open, and can be installed on panels or manifolds to provide manual overrides or start/stop air functions.
| Thumbnail | SKU | Ways | Actuation | Function | Size | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|

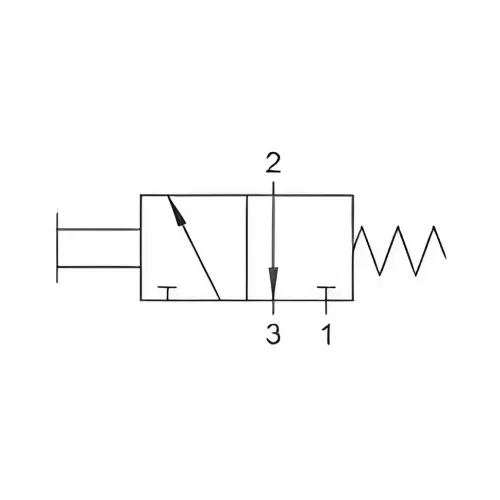

 | 01VT03NC02 | 3/2 | Spring Return | NC | 1/8" | Availability: 7 in stock | $124.31 +gst | ||
 | 01VT03NC03 | 3/2 | Spring Return | NC | 1/4" | Availability: 6 in stock | $148.53 +gst | ||
 | 01VT050002 | 5/2 | Spring Return | - | 1/8" | Availability: 4 in stock | $155.75 +gst | ||

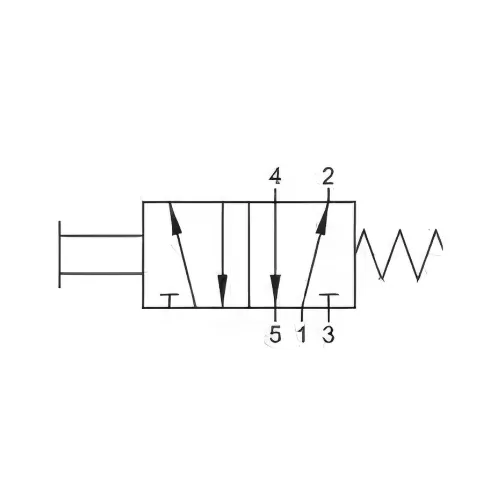

 | 01VT050003 | 5/2 | Spring Return | - | 1/4" | Availability: 5 in stock | $158.49 +gst | ||

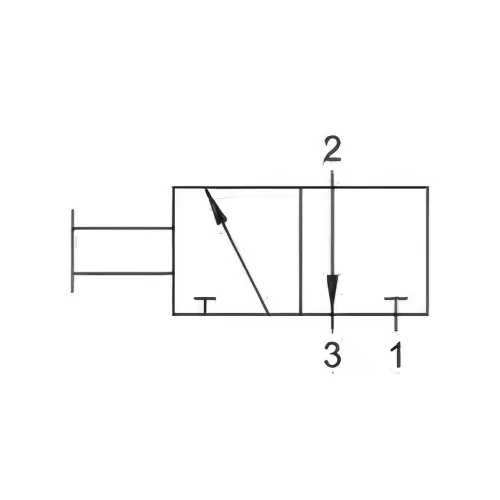

 | 01VT130002 | 3/2 | Push / Pull | - | 1/8" | Availability: 3 in stock | $124.31 +gst | ||
 | 01VT130003 | 3/2 | Push / Pull | - | 1/4" | Availability: 2 in stock | $148.53 +gst | ||

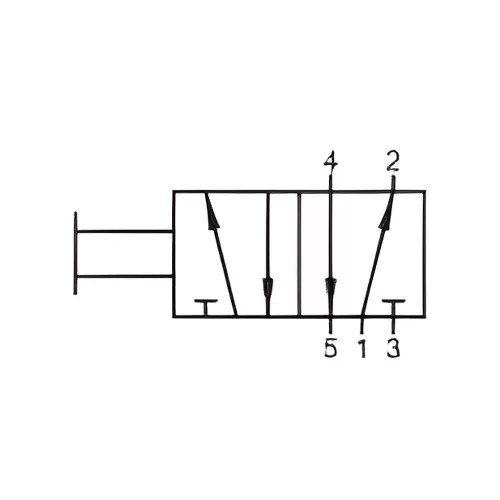

 | 01VT150002 | 5/2 | Push / Pull | - | 1/8" | Availability: 4 in stock | $118.25 +gst | ||
 | 01VT150003 | 5/2 | Push / Pull | - | 1/4" | Availability: 5 in stock | $151.28 +gst |
Technical Specifications:
Configuration: 3/2 ways (normally open or normally closed)
Port sizes: G1/8 and G1/4
Flow rate: 500–1200 Nl/min
Operating pressure: 1.5–8 bar
Operating temperature: -10°C to +60°C
Body: Aluminium with durable manual actuator
Seals: NBR
Applications: Operator panels, machine control stations, pneumatic test benches
| Ways | 3/2, 3/2, 5/2, 5/2, 3/2, 3/2, 5/2, 5/2 |
|---|---|
| Actuation | Spring Return, Spring Return, Spring Return, Spring Return, Push / Pull, Push / Pull, Push / Pull, Push / Pull |
| Function | NC, NC, -, -, -, -, -, – |
| Size | 1/8", 1/4", 1/8", 1/4", 1/8", 1/4", 1/8", 1/4" |
