This full metal solution offers robust and high performances.
This “high pressure” line is specifically used for centralised lubrication systems (oil & grease) and can work up to 150 bar, even under strong vibrations.
Applications
– Robotics
– Automotive
– Heavy Industry / Railways
– Compressed air Circuit
– Cooling water
– Vacuum
Push Fit Fittings

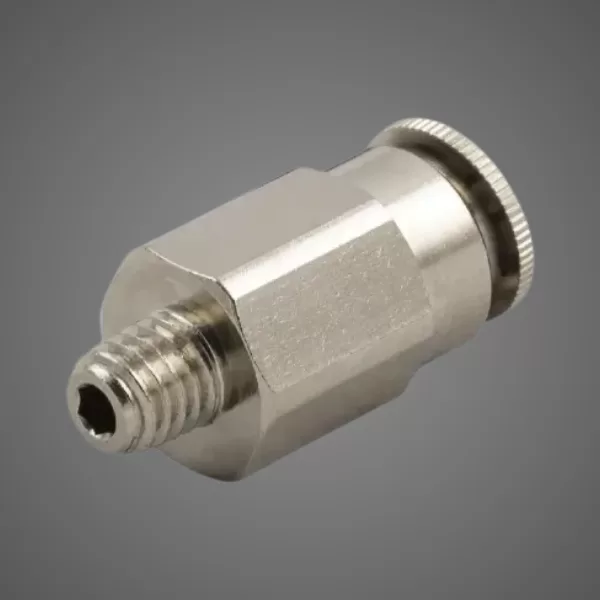

High Pressure Straight Push In
Price range: $4.85 through $6.81 +gst
Nick Plated Brass Heavy-Duty, High Pressure Fitting
Designed as grease line fittings for lubrication systems
Fluids – Compressed air / Vacuum / Water / Oil / Grease
Quick connection and disconnection
Temperature
– 30 °C
+ 150 °C
Pressures
min pressure: 0 bar (0 MPa)
max pressure with fluids: 150 bar (15 MPa)
max pressure with air: 30 bar (3 MPa)
Available Options
| Thumbnail | SKU | Tube - Thread Size | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|
 | 58000-4-1/8 | 6mm – 1/8"BSPT | Availability: 22 in stock | $5.00 +gst | ||
| 58000-4-M6X1 | 4mm – M6x1 | Availability: 33 in stock | $5.50 +gst | ||
| 58000-6-1/8 | 6mm – 1/8"BSPT | Availability: 36 in stock | $5.50 +gst | ||
| 58000-6-M10X1 | 6mm – M10x1 | Availability: 13 in stock | $6.81 +gst | ||
| 58000-6-M6X1 | 6mm – M6x1 | Availability: 19 in stock | $4.85 +gst | ||
| 58000-6-M8X1 | 6mm – M8x1 | Availability: 20 in stock | $5.50 +gst |
| Tube - Thread Size | 6mm – 1/8"BSPT, 4mm – M6x1, 6mm – 1/8"BSPT, 6mm – M10x1, 6mm – M6x1, 6mm – M8x1 |
|---|
