This full metal solution offers robust and high performances.
This “high pressure” line is specifically used for centralised lubrication systems (oil & grease) and can work up to 150 bar, even under strong vibrations.
Applications
– Robotics
– Automotive
– Heavy Industry / Railways
– Compressed air Circuit
– Cooling water
– Vacuum
Push Fit Fittings

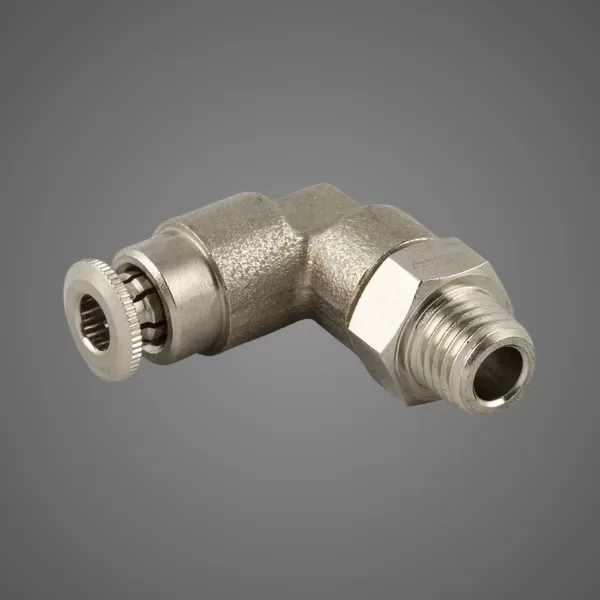

High Pressure Swivel Elbow Push In
Price range: $8.12 through $11.52 +gst
Nick Plated Brass Heavy-Duty, High Pressure Fitting
Designed as grease line fittings for lubrication systems
Fluids – Compressed air / Vacuum / Water / Oil / Grease
Quick connection and disconnection
Temperature
– 30 °C
+ 150 °C
Pressures
min pressure: 0 bar (0 MPa)
max pressure with fluids: 150 bar (15 MPa)
max pressure with air: 30 bar (3 MPa)
Available Options
| Thumbnail | SKU | Tube - Thread Size | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|
 | 58111-6-1/8 | 6mm – 1/8"BSP | Availability: 36 in stock | $8.12 +gst | ||
| 58111-6-M10X1 | 6mm – M10x1 | Availability: 11 in stock | $9.19 +gst | ||
| 58111-6-M10X1.5 | 6mm – M10x1.5 | Out of stock | $9.40 +gst | ||
| 58111-6-M6X1 | 6mm – M6x1 | Availability: 38 in stock | $8.52 +gst | ||
| 58111-6-M8X1 | 6mm – M8x1 | Availability: 20 in stock | $11.52 +gst | ||
| 58111-6-M8X1.25 | 6mm – M8x1.25 | Availability: 6 in stock | $9.38 +gst |
| Tube - Thread Size | 6mm – 1/8"BSP, 6mm – M10x1, 6mm – M10x1.5, 6mm – M6x1, 6mm – M8x1, 6mm – M8x1.25 |
|---|
