Price range: $231.02 through $254.10 +gst

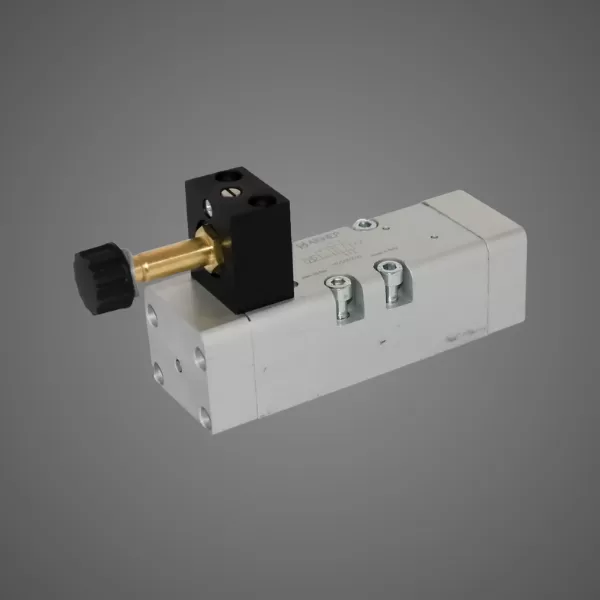

The Aignep 10V series complies with the ISO 5599/1 Size 1 standard, offering modular, interchangeable valve units for industrial pneumatic systems.
| Thumbnail | SKU | Ways | Actuation | Function | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|

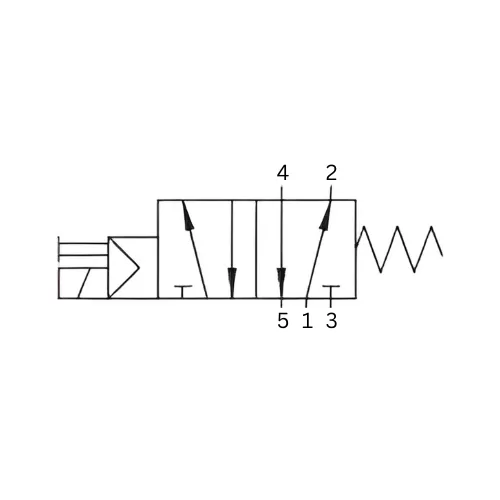

 | 10VS050000 | 5/2 | Solenoid / Spring Return | - | Availability: 7 in stock | $231.02 +gst | ||

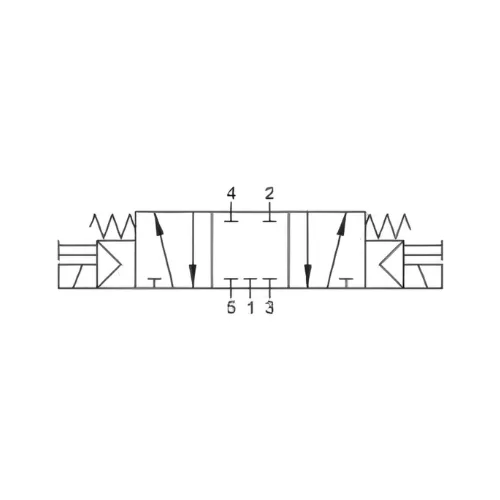

 | 10VS07CC00 | 5/3 | Solenoid / Spring Return | All Ports Blocked | Availability: 2 in stock | $254.10 +gst | ||

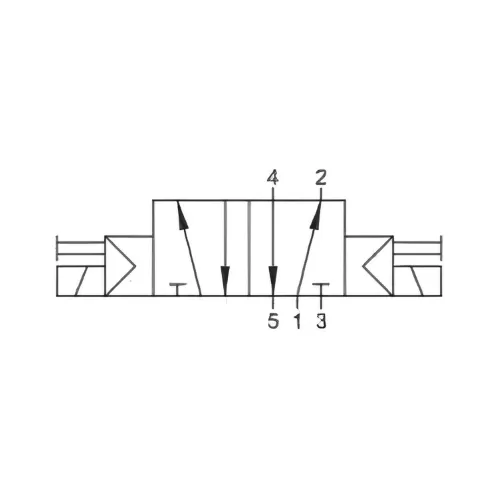

 | 10VS150000 | 5/2 | Double Solenoid | - | Availability: 4 in stock | $236.07 +gst |
Technical Specifications:
Configuration: 5/2 and 5/3 ways
Standard: ISO 5599/1 – Size 1
Flow rate: 1200–2000 Nl/min
Operating pressure: 2–10 bar
Temperature range: -10°C to +60°C
Body: Aluminium
Seals: NBR
Mounting: ISO base (10VB)
Applications:
Industrial automation
Pneumatic manifolds
Modular machine control systems
| Ways | 5/2, 5/3, 5/2 |
|---|---|
| Actuation | Solenoid / Spring Return, Solenoid / Spring Return, Double Solenoid |
| Function | -, All Ports Blocked, – |
