Price range: $306.45 through $450.88 +gst

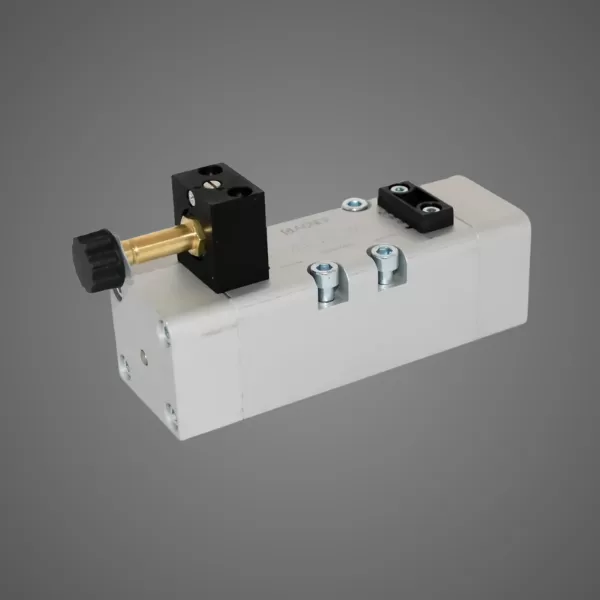

The Aignep 11V series is the larger-size counterpart to 10V, designed under ISO 5599 – Size 2.
They provide higher flow rates for demanding pneumatic circuits.
| Thumbnail | SKU | Ways | Actuation | Function | Size | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|

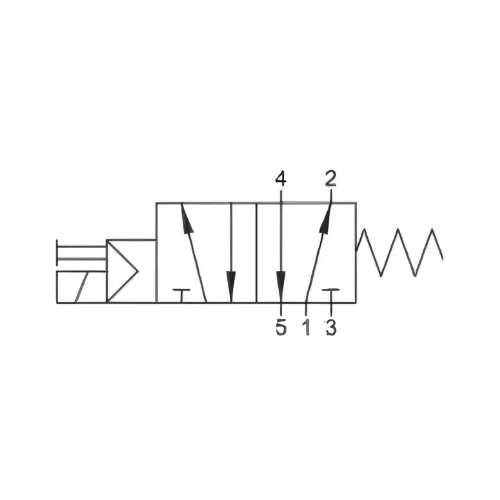

 | 11VS050000 | 5/2 | Solenoid / Spring Return | - | ISO 5599 Size 2 | Availability: 7 in stock | $306.45 +gst | ||
 | 11VS07CC00 | 5/3 | Solenoid / Spring Return | All Ports Blocked | ISO 5599 Size 2 | Availability: 3 in stock | $450.88 +gst | ||

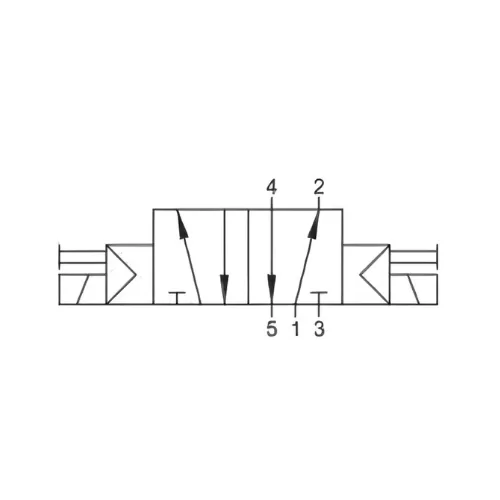

 | 11VS150000 | 5/2 | Double Solenoid | - | ISO 5599 Size 2 | Availability: 2 in stock | $407.17 +gst |
Technical Specifications:
Configuration: 5/2 and 5/3 ways
Flow rate: Up to 4000 Nl/min
Operating pressure: 2–10 bar
Temperature: -10°C to +60°C
Body: Aluminium
Mounting: ISO base (11VB)
Applications:
High-flow automation
Pneumatic systems requiring ISO interchangeability
| Ways | 5/2, 5/3, 5/2 |
|---|---|
| Actuation | Solenoid / Spring Return, Solenoid / Spring Return, Double Solenoid |
| Function | -, All Ports Blocked, – |
| Size | ISO 5599 Size 2, ISO 5599 Size 2, ISO 5599 Size 2 |
