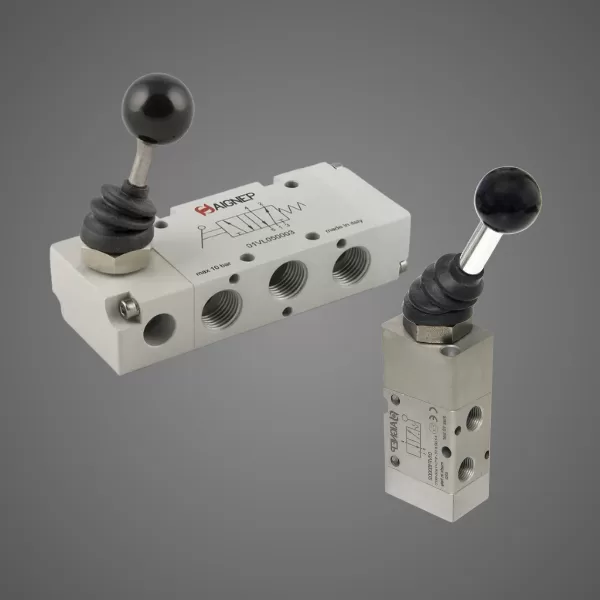

Manual Lever Valves

Technical Specifications:

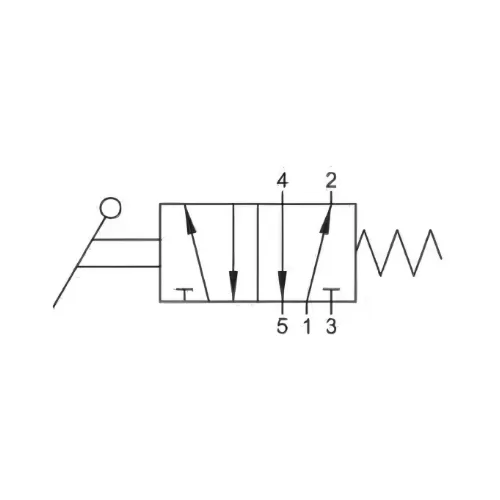

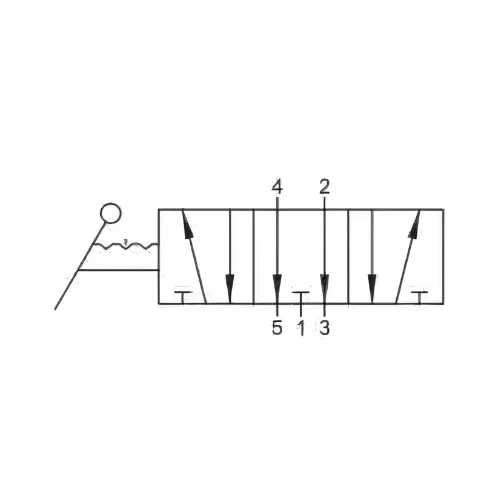

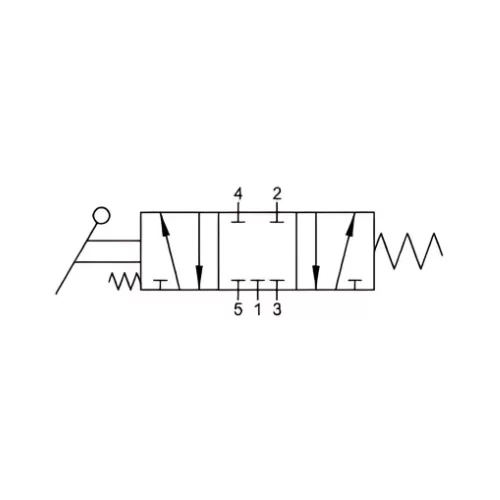

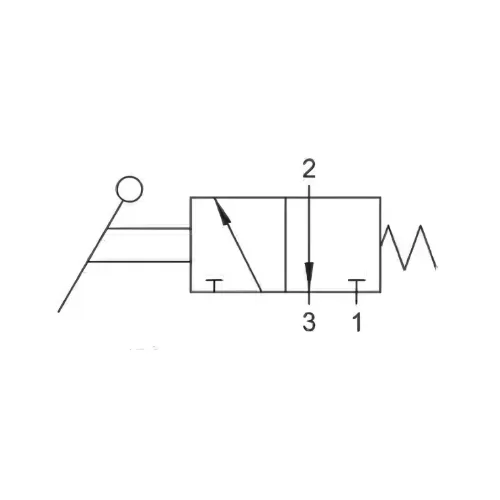

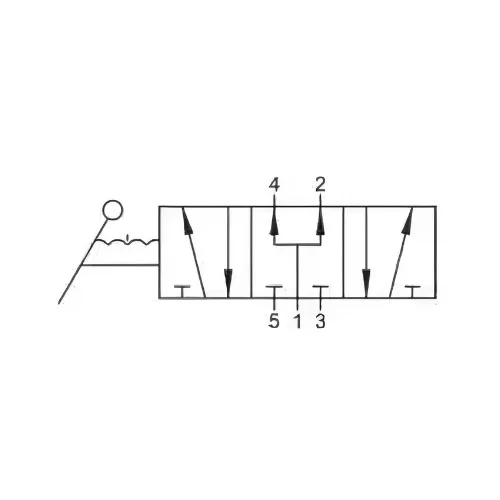

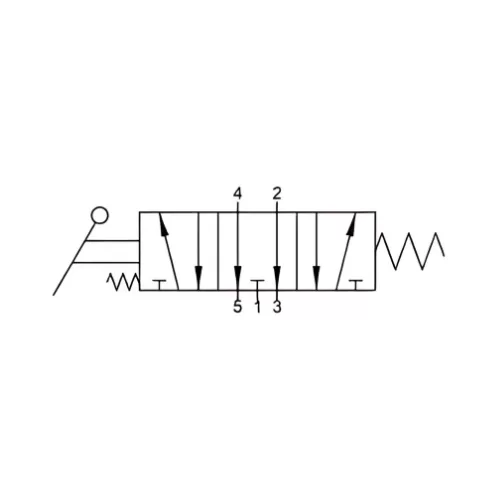

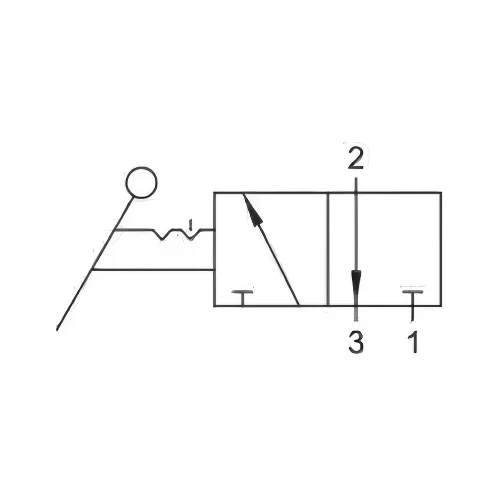

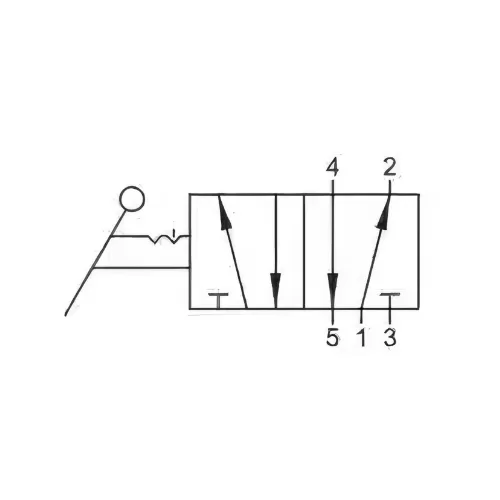

• Valve type: 3/2, 5/2, or 5/3 ways

• Port sizes: G1/8, G1/4, G3/8, G1/2

• Flow rate (6 bar Δp1): 500 to 5000 Nl/min (depending on port size)

• Operating pressure: 1.5 – 10 bar

• Operating temperature: -10 °C to +60 °C

• Body material: Anodised aluminium, painted finish on larger sizes

• Spool material: Nickel-plated aluminium

• Seals: NBR

• Actuation: Manual lever, available with:

  • Spring return (monostable)

  • Lever/lever (bistable)

  • Lever with mechanical detent or lockout

• Mounting: Through holes or sub-base

• Medium: Filtered, lubricated, or non-lubricated compressed air

• Applications:

  • Manual control of cylinders and actuators

  • Machinery requiring precise operator control

  • Workshop and testing equipment

  • Pneumatic circuit overrides
