Mechanical Roller Valve

Price range: $75.71 through $114.09 +gst

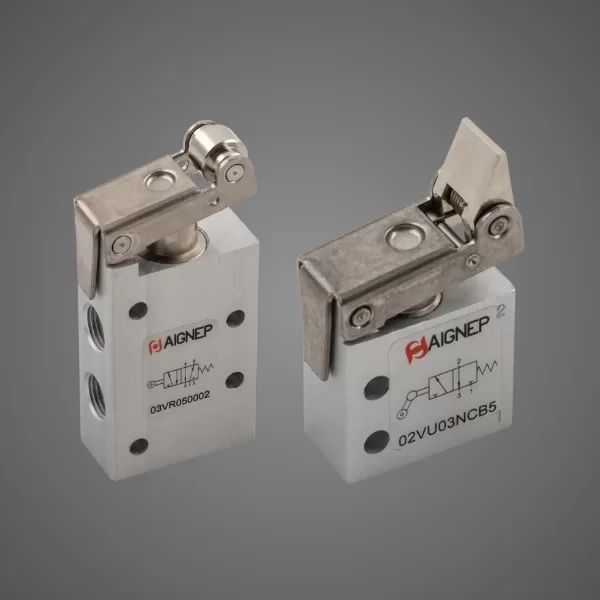

The Aignep 03V mechanical roller valves are actuated by direct mechanical contact, ideal for machinery with physical triggers or travel-limit actuation.

The Aignep 02VU micro roller valve series is designed for compact pneumatic applications requiring precise air control in minimal space. These valves are lightweight, highly reliable, and ideal for use in control panels, instrumentation, and small automation systems. Despite their small dimensions, they provide excellent flow capacity and fast response times.

SKU: 03VR2VU Category:

Available Options

ThumbnailSKUWaysActuationFunctionSizeStockPriceQuantity
03VR03NC023/2Roller / Spring ReturnNC1/8"

Availability: 5 in stock

$86.71 +gst

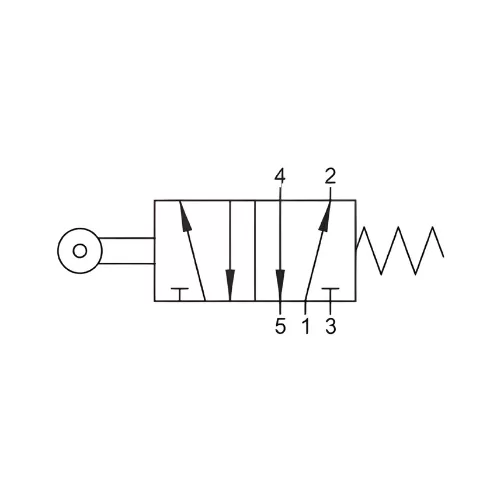

03VR0500025/2Roller / Spring Return-1/8"

Availability: 4 in stock

$114.09 +gst
02VU03NCB53/2Uni-directional RollerNCM5

Availability: 2 in stock

$75.71 +gst

Technical Specifications 03V:

  • Configuration: 3/2 or 5/2 ways

  • Port sizes: G1/8, G1/4

  • Flow rate: 500–1200 Nl/min

  • Operating pressure: 1.5–8 bar

  • Temperature range: -10°C to +60°C

  • Body: Aluminium

  • Actuation: Roller or plunger mechanical trigger

  • Applications: Machine automation, conveyor systems, and pneumatic end-of-travel sensing

Technical Specifications 02VU:

  • Valve type: 3/2-way

  • Port size: G1/8

  • Flow rate (at 6 bar Δp1): Up to 300 Nl/min

  • Operating pressure: 0–10 bar

  • Temperature range: -10°C to +60°C

  • Body material: Anodised aluminium

  • Seals: NBR

Ways

3/2, 5/2, 3/2
Actuation

Roller / Spring Return, Roller / Spring Return, Uni-directional Roller
Function

NC, -, NC
Size

1/8", 1/8", M5
