Price range: $155.25 through $165.03 +gst

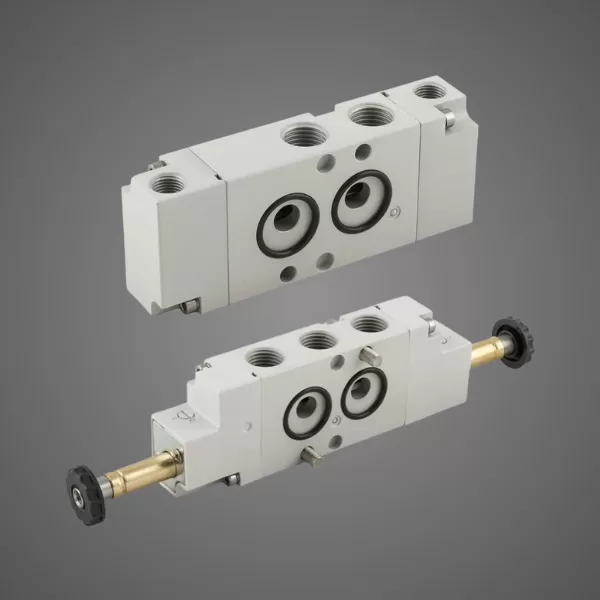

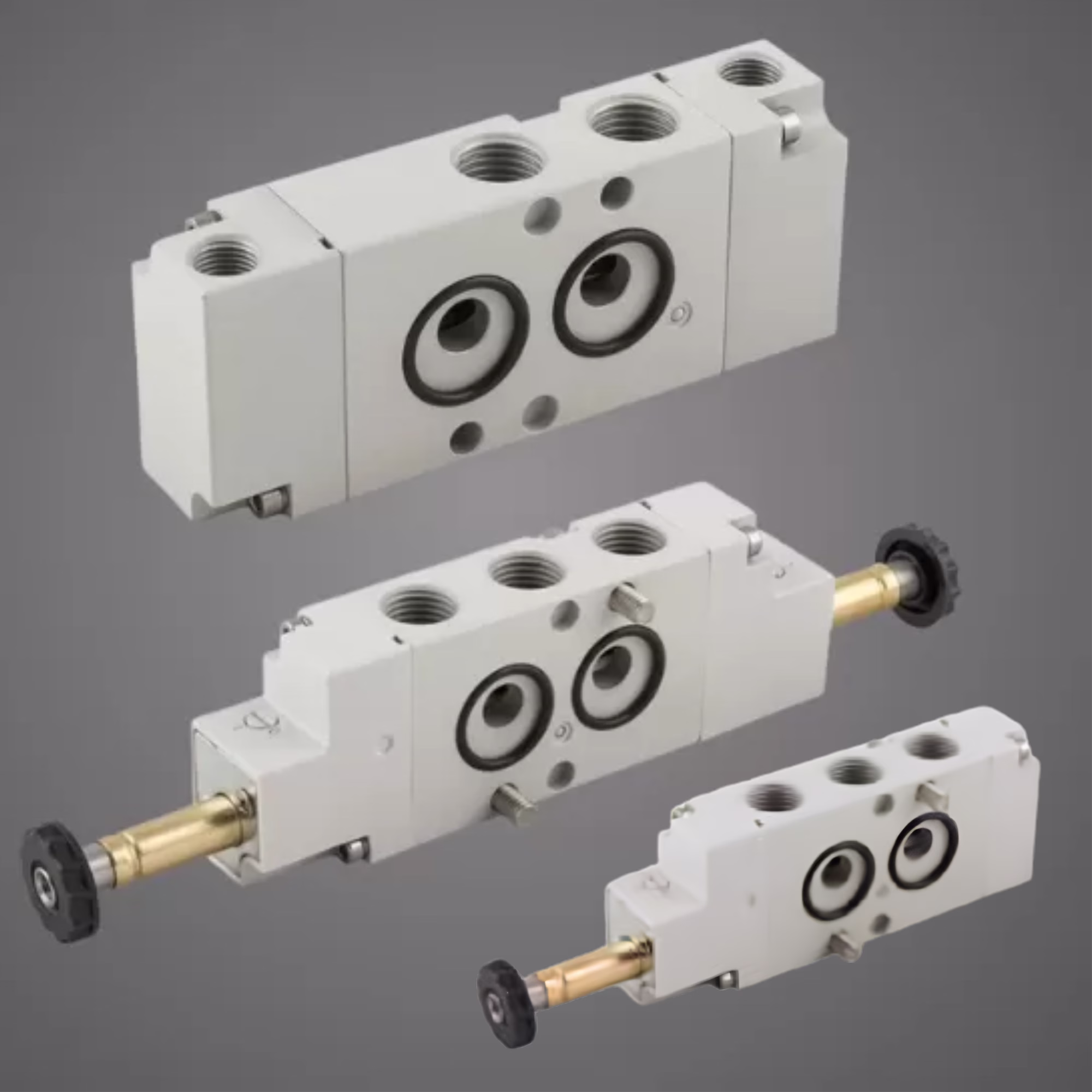

The 08V series is built specifically for actuator mounting using the NAMUR interface standard.
They deliver reliable performance in process automation, water treatment, and valve actuation applications.
| Thumbnail | SKU | Ways | Actuation | Function | Size | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|

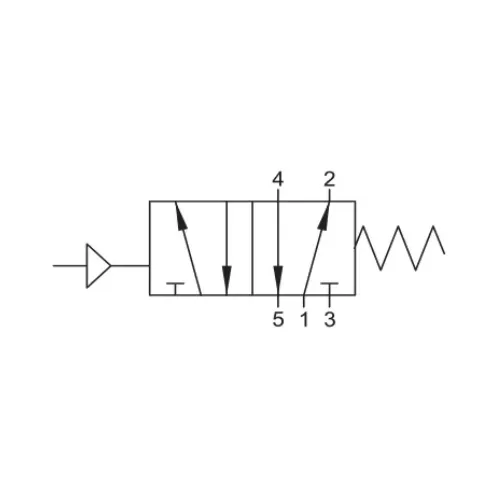

 | 08VP050003 | 5/2 | Pilot / Spring Return | - | Namur 1/4" | Availability: 2 in stock | $165.03 +gst | ||

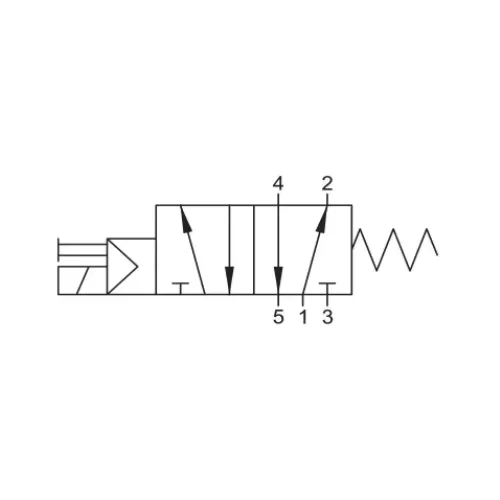

 | 08VS050003 | 5/2 | Solenoid / Spring Return | - | Namur 1/4" | Availability: 1 in stock | $155.25 +gst |
Technical Specifications:
Configuration: 5/2 ways
Mounting interface: NAMUR standard
Flow rate (6 bar Δp1): Up to 2000 Nl/min
Operating pressure: 2–8 bar
Temperature range: -10°C to +50°C
Body: Anodised aluminium
Seals: NBR
Actuation: Solenoid or pneumatic pilot
Medium: Filtered and lubricated compressed air
Applications:
Pneumatic actuator control
Process valve automation
Water, chemical, and food industries
| Ways | 5/2, 5/2 |
|---|---|
| Actuation | Pilot / Spring Return, Solenoid / Spring Return |
| Function | -, – |
| Size | Namur 1/4", Namur 1/4" |
