This direct acting solenoid valve is designed for precise interception of fluids compatible with its durable construction materials. With no minimum operating pressure required, it delivers consistent performance and long service life. Built from high-quality brass and stainless steel components, each valve undergoes rigorous testing to ensure reliability under demanding conditions. Featuring FKM seals as standard (with NBR available on request), ISO 4400-compliant connectors, and IP65 protection when fitted with a coil, this valve combines strength, safety, and efficiency in one compact unit.
Solenoid Process Valves

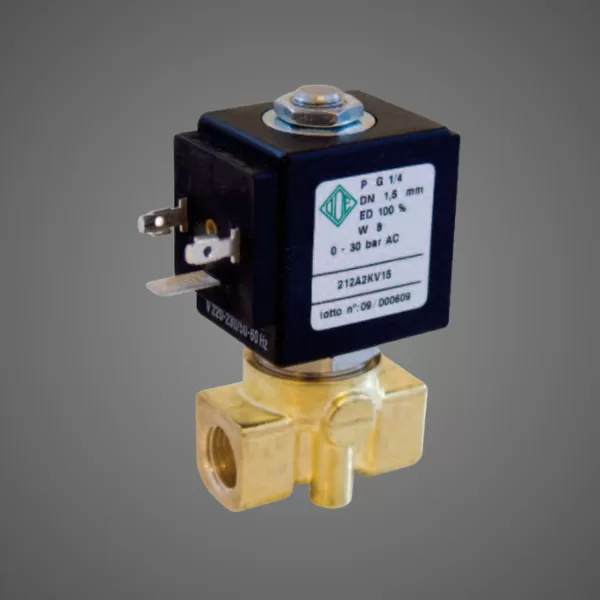

ODE Solenoid Valve 2/2 Way N.C. Direct Acting 1/4″
$111.60 +gst
Product Code: 212A2KV55
Ways: 2/2
Position: NC
Standard: ISO 228/1
Gasket Material: FKM
Temperature Range: -10°C to +140°C
Medium: Mineral oils, gasoline, gas oil, fuel oils
Max Viscosity: 53 cSt (~7°E)
Port Size: 1/4″
Orifice: 5.5 mm
Kv: 9 l/min
Power: 8 / 12 / 14 W
Minimum Pressure: 0 bar
Max Pressure (AC): 3 / 7 / 10 bar
Max Pressure (DC): 1 / 2.5 / 5 bar
Max Allowable Pressure: 40 bar
Availability: 1 in stock
| Ways | 2/2 |
|---|---|
| Position | NC |
| Port Size | 1/4" |
| Standard | ISO 228/1 |
