This direct acting solenoid valve is designed for the interception of fluids compatible with its high-quality stainless steel construction. With no minimum operational pressure required, it ensures reliable performance and long service life in demanding applications, including chemistry and drinks industries. Featuring PTFE seals, gold-plated copper components, and stainless steel wetted parts, the valve combines durability with chemical resistance. When fitted with a coil and connector, it achieves IP65 protection and complies with ISO 4400 and IEC 335 standards.
Solenoid Process Valves

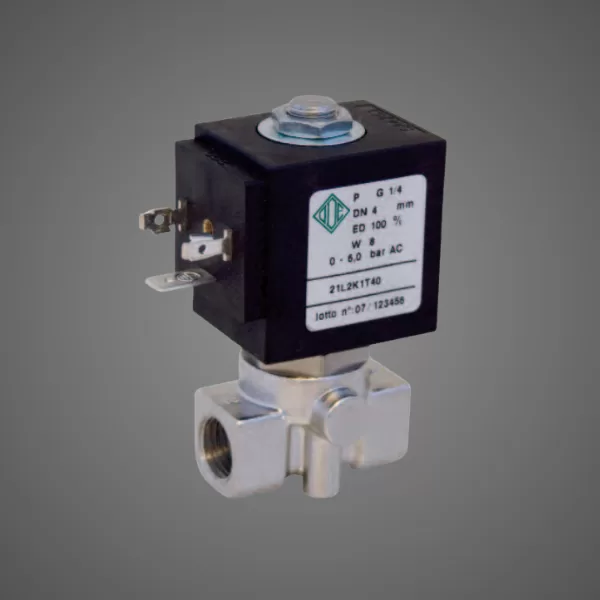

ODE Solenoid valve 2/2 way N.C. Direct acting 1/4″ Stainless Steel
$222.80 +gst
Product Code: 21L2K1T25
Standard: ISO 228/1
Gaskets: PTFE
Temperature Range: -10°C to +180°C
Medium: Demineralized water, steam, syrups, chemicals
Port Size: 1/4″
Orifice: 2.5 mm
Kv Flow Rate: 3.2 l/min
Max Viscosity: 53 cSt (~7°E)
Power: 8 / 12 / 14 W
Minimum Pressure: 0 bar
MOPD (AC): 14 / 30 bar
MOPD (DC): 9 / 25 bar
Max Allowable Pressure: 40 bar
Availability: 2 in stock
| Ways | 2/2 |
|---|---|
| Position | N/C |
| Port Size | 1/4" |
| Standard | ISO 228/1 |
