This direct acting solenoid valve is designed for the interception of fluids compatible with its robust construction materials. With no minimum operating pressure required, it delivers reliable performance across a wide range of applications. Manufactured from high-quality brass, stainless steel, and copper components, each valve is built and tested to ensure long service life and dependable operation. Standard sealing is FKM (V), with NBR (B) or CR (N) options available on request. When fitted with a coil and connector, the unit achieves IP65 protection and complies with ISO 4400 and IEC 335 standards.
Solenoid Process Valves

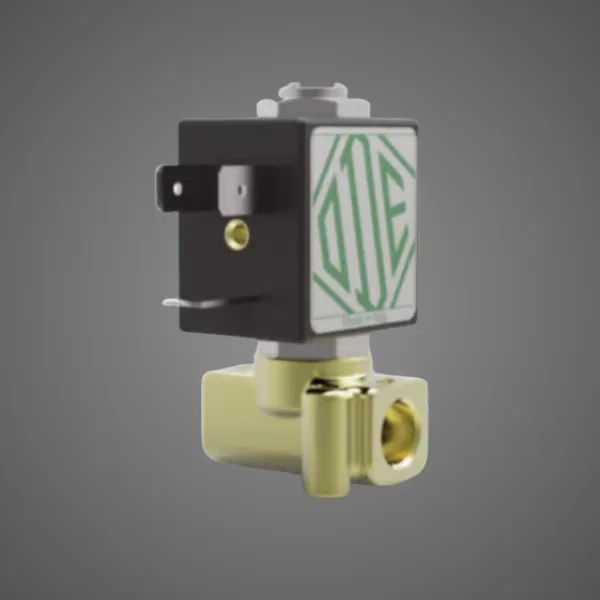

ODE Solenoid valve 2/2 way N.C. Direct acting 1/8″
$94.96 +gst
Product Code: 21JN1R0V23
Standard: ISO
Gaskets: FKM (fluoroelastomer)
Temperature Range: -10°C to +140°C
Medium: Mineral oils, gasoline, gas oil, fuel oils
Port Size: 1/8″
Orifice: 2.3 mm
Kv Flow Rate: 2.3 l/min
Max Viscosity: 37 cSt (~5°E)
Power: 2.5 / 5 W
Minimum Pressure: 0 bar
MOPD (AC): 6 / 18 bar
MOPD (DC): 8 bar
Max Allowable Pressure: 40 bar
Availability: 1 in stock
