This pilot-controlled solenoid valve is designed for the interception of fluids compatible with its high-quality construction materials. Requiring a minimum operational pressure of 0.2 bar, it ensures reliable performance and long-lasting durability. The valve features a brass body, stainless steel components, and a standard NBR seal (EPDM or FKM available on request). When fitted with a coil and connector, it complies with IEC 335 electrical standards and achieves IP65 protection.
Solenoid Process Valves

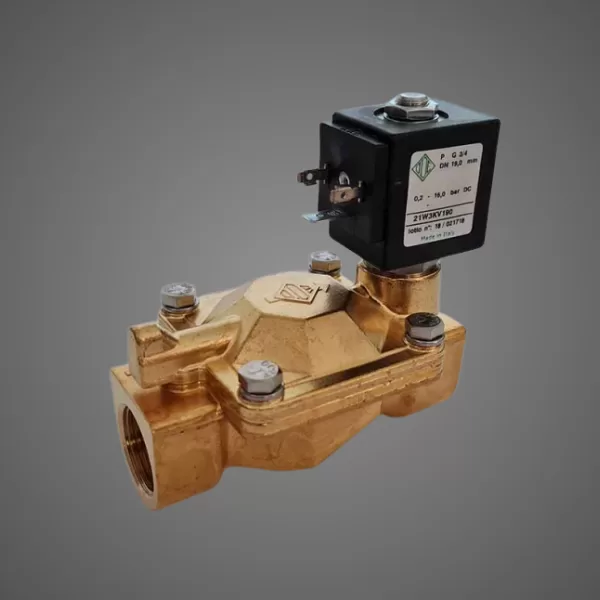

ODE Solenoid valve 2/2 way N.C. Pilot control 3/4″
$347.00 +gst
Product Code: 21W3KV190
Standard: ISO 228/1
Gaskets: FKM (fluoroelastomer)
Temperature Range: -10°C to +140°C
Medium: Mineral oils, gasoline, gas oil
Port Size: 3/4″
Orifice: 19 mm
Kv Flow Rate: 140 l/min
Availability: 1 in stock
| Ways | 2/2 |
|---|---|
| Position | N/C |
| Port Size | 3/4" |
| Standard | ISO 228/1 |
