This pilot-operated solenoid valve is designed for the interception of fluids compatible with its high-quality construction materials. Requiring a minimum operating pressure of 0.1 bar, it provides reliable and long-lasting performance across automation and heating applications. Built from durable brass, stainless steel, and copper components, each valve is tested to ensure maximum reliability and service life. Standard sealing is FKM (V), with NBR (B) or EPDM (E) options available on request. When fitted with a coil and connector, the valve achieves IP65 protection, conforming to ISO 4400 and IEC 335 standards.
Solenoid Process Valves

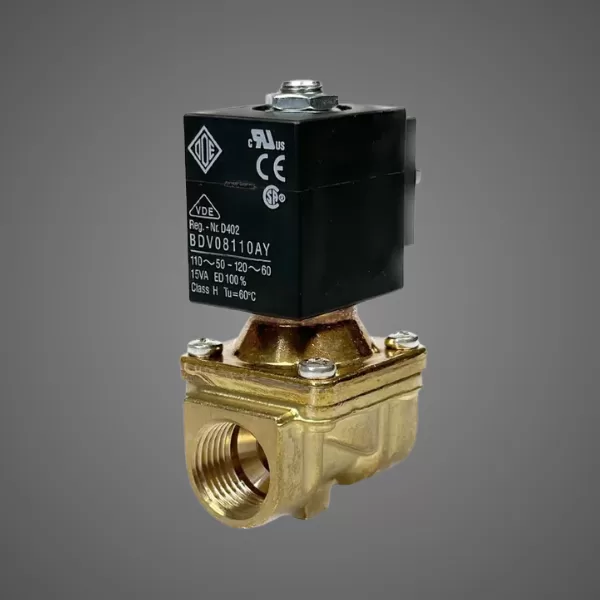

ODE Solenoid valve 2/2 way N.C. With pilot control 1/2″
$185.72 +gst
Product Code: 21IZ1FS1BTT0502BP
Ways: 2/2
Position: N/C
Standard: ISO 228/1
Seating and Packing Seal: PTFE
Fluid Temperature Range: -10°C to +180°C
Ambient Temperature Range: -10°C to +80°C
Medium: Fluids, Gases, Vapours (Neutral, Aggressive)
Fluid Viscosity: max 600 cSt
Port Size: 2″
Orifice: 45 mm
Kv: 660 l/min
Differential Pressure: 0–10 bar
Max Allowable Pressure: 20 bar
Actuator Pilot Pressure: 6–8 bar
Body Material Actuator: Stainless Steel AISI 315
Pilot Actuator Fluid: Air, Inert Gases
Pilot Actuator Fluid Temperature: max +80°C
Pilot Housing: AISI 308
Pilot Seals: FKM
Pilot Sizes: Ø40–50–63–90–129
Availability: 2 in stock
| Ways | 2/2 |
|---|---|
| Position | N/C |
| Port Size | 2" |
| Standard | ISO 228/1 |
