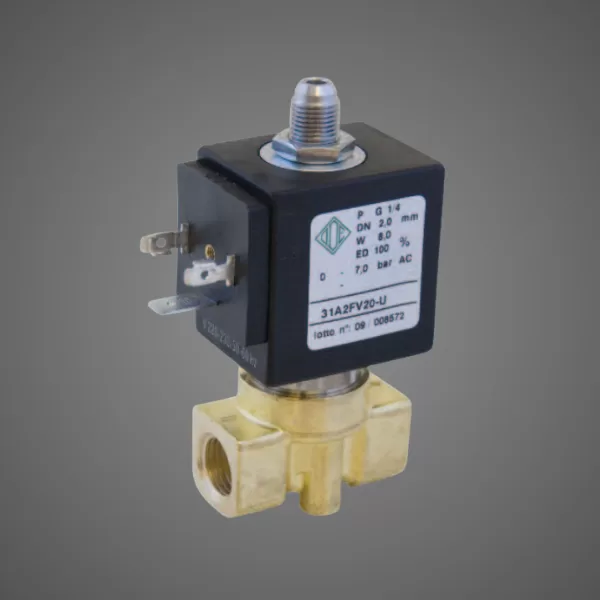

ODE Solenoid Valve 3/2 Way – Universal Direct Acting 1/4″

Name: ODE Solenoid Valve 3/2 Way - Universal Direct Acting 1/4"
SKU: 31A2FV20-U
Availability: InStock

$175.38 +gst

Product Code: 31A2FV20-U; Standard: ISO 228/1; Gaskets: FKM (fluoroelastomer); Temperature Range: -10°C to +140°C; Medium: Mineral oils (2°E), gasoline, gas oil, fuel oils (7°E); Port Size: 1/4″; Ø Orifice: 2 mm; Kv Flow Rate: 2 l/min; Max Viscosity (cSt): 37; Max Viscosity (°E): ~5; Power (Watt): 8; Pressure (Min): 0 bar; Pressure M.O.P.D. (AC): 7 bar; Pressure M.O.P.D. (DC): 7 bar; Max Allowable Pressure (PS): 40 bar

Availability: 2 in stock

SKU: 31A2FV20-U Category: Solenoid valves

This direct acting solenoid valve is designed for the interception of fluids compatible with its high-quality construction materials. Requiring no minimum operational pressure, it delivers reliable and long-lasting performance in automation and heating applications. Built from brass, stainless steel, and copper components, it features FKM seals as standard and stainless steel insert slot orifices. When fitted with a coil and connector, the valve achieves IP65 protection and complies with ISO 4400 and IEC 335 standards.
