The 21IA Series angle seat valve features all wetted parts in high-grade Stainless Steel AISI 316 for superior corrosion resistance and durability. Its advanced design delivers exceptional flow performance beyond what is typically achievable with other valve types. A Teflon sealing system combined with an auto-positioning seat minimizes leakage and extends service life. Engineered for use with contaminated or chemically aggressive fluids, the 21IA also eliminates water hammer by positioning the inlet flow beneath the obturator. Designed for “against flow” installation, it offers precise control when used with steam or gases.
Angle seat valves, Solenoid valves

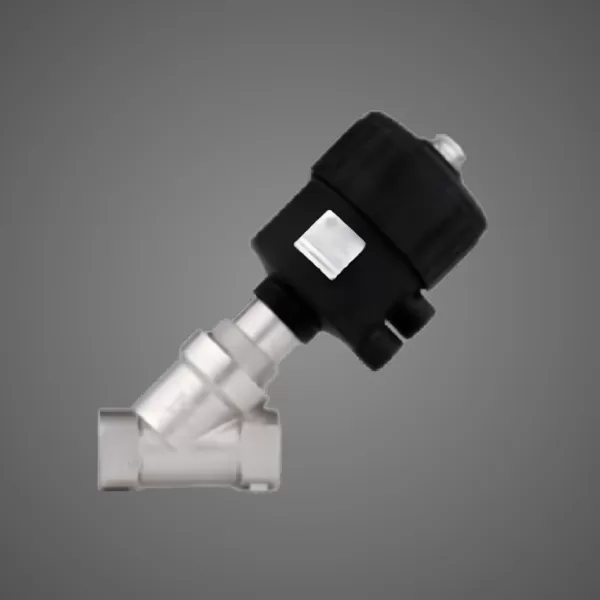

ODE Stainless Steel Angle Seat Valve N.C. 1 1/4″
$918.03 +gst
Product Code: 21IA7T32GC2; Body Material: Stainless Steel AISI 315; Actuator Body Material: Polyamide 66 with 30% Glass Fibre; Seal Material: PTFE; Packing Gland: PTFE, FKM; Actuator Gasket: NBR; Fluid Temperature Range: -10°C +180°C; Ambient Temperature Range: -10°C +60°C; Actuator Bore: Ø70mm; Fluid Temperature of Actuator: max +60°C; Medium: Lubricated or Unlubricated Air, Gases or Inert Gases; Max Viscosity: 600 cSt; Port Size: 1 1/4″; Ø Orifice: 32 mm; Kv Flow Rate: 340 l/min; Pressure Range: 0–7 bar; Weight: 2.2 kg; Actuator Pilot Pressure: 4–10 bar; Max Allowable Pressure (PS): 25 bar
Availability: 1 in stock
| Body Material | Stainless Steel AISI 315 |
|---|---|
| Position | NC |
| Port Size | 1 1/4" |
