Panel Mounted Mechanically Operated Plunger Valves

Panel Mounted Mechanically Operated Plunger Valves

Price range: $53.17 through $67.73 +gst

The Aignep 02VD micro valve series is designed for compact pneumatic applications requiring precise air control in minimal space. These valves are lightweight, highly reliable, and ideal for use in control panels, instrumentation, and small automation systems. Despite their small dimensions, they provide excellent flow capacity and fast response times.

04v Push buttons and Selectors compatible to these valves.



SKU: 02V Category:

Available Options

ThumbnailSKUTypeWaysActuationSizeStockPriceQuantity

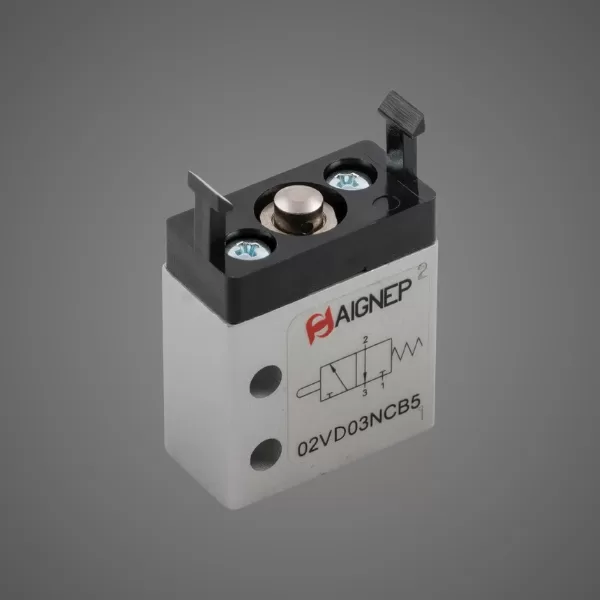

02VD03NCB5Microvalve3/2Plunger NCM5

Availability: 3 in stock

$53.17 +gst
02VD03NOB5Microvalve3/2Plunger NOM5

Availability: 2 in stock

$67.73 +gst

Technical Specifications:

  • Valve type: 3/2-way, normally closed or normally open

  • Flow rate (at 6 bar Δp1): Up to 300 Nl/min

  • Operating pressure: 0–10 bar

  • Temperature range: -10°C to +60°C

  • Actuation: Manual, mechanical, pneumatic, or electric (depending on model)

  • Body material: Anodised aluminium

  • Internal parts: Stainless steel and brass

  • Seals: NBR

  • Mounting: Panel-mountable

  • Medium: Filtered and lubricated compressed air

  • Applications:

    • Compact pneumatic control systems

    • Instrumentation panels

    • Low-flow pilot circuits

    • Air logic control for automation machinery

Type

Microvalve, Microvalve
Ways

3/2, 3/2
Actuation

Plunger NC, Plunger NO
Size

M5, M5, -, -, -, -, -, -, -, -, -, -, 40 mm, 40 mm, 40 mm
