Price range: $173.99 through $182.44 +gst

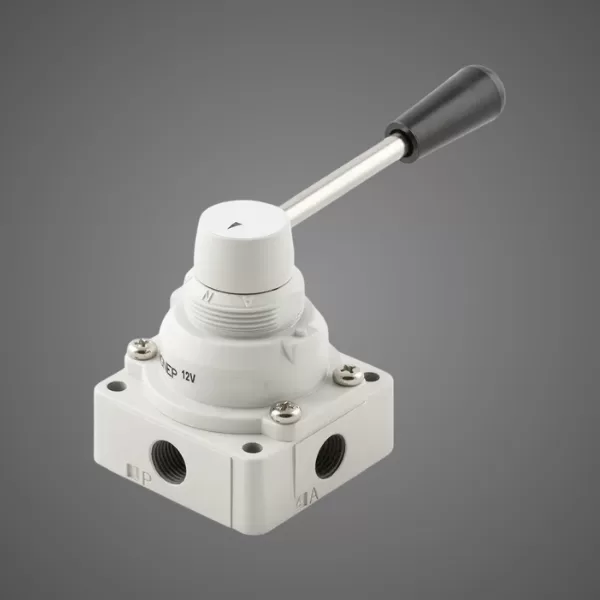

The Aignep 12V series offers manual rotary control valves that deliver smooth directional actuation for pneumatic systems.
Ideal for machine panels and workstations, these valves combine mechanical reliability with ergonomic design.
| Thumbnail | SKU | Ways | Actuation | Function | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|
 | 12V1L14NO03 | 4/2 | Lever / Lever | NO | Out of stock | $173.99 +gst | ||

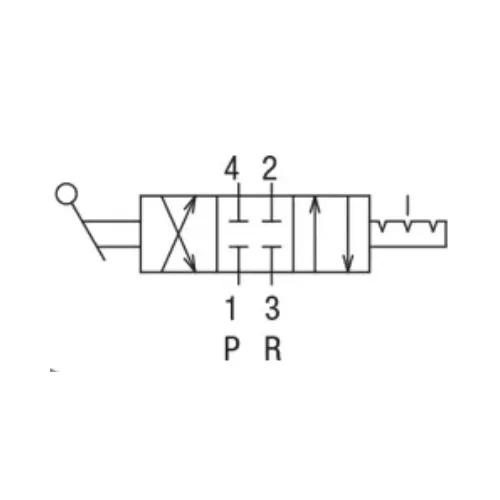

 | 12V1L26CC03 | 4/3 | Lever / Lever / Lever | All Ports Blocked | Availability: 1 in stock | $182.44 +gst |
Technical Specifications:
Configuration: 5/2 ways
Port sizes: G1/8, G1/4
Flow rate: 400–900 Nl/min
Operating pressure: 1.5–8 bar
Temperature range: -10°C to +60°C
Body material: Aluminium
Seals: NBR
Actuation: Manual lever, spring return, or bistable options
Applications:
Manual machine operation
Operator control panels
System override functions
| Ways | 4/2, 4/3 |
|---|---|
| Actuation | Lever / Lever, Lever / Lever / Lever |
| Function | NO, All Ports Blocked |
