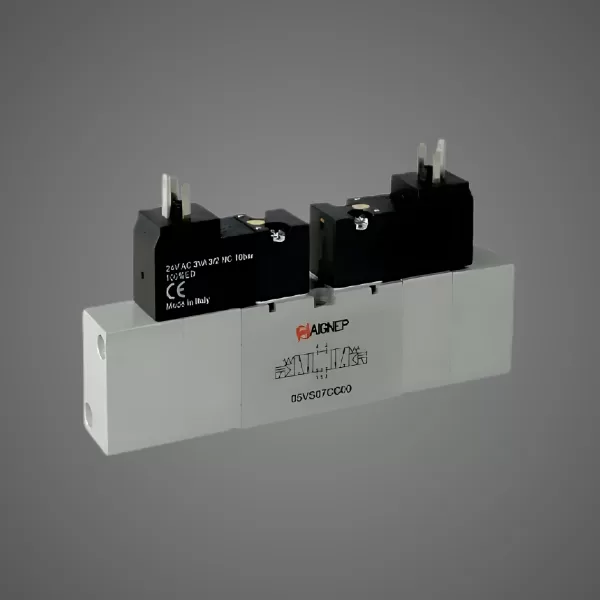

Solenoid Pilot 18mm VDMA Valve 24V DC

Name: Solenoid Pilot 18mm VDMA Valve 24V DC
SKU: 05VS
Availability: InStock

Price range: $240.73 through $453.18 +gst

The Aignep 05V series conforms to the VDMA 18 mm standard for compact solenoid valves. These valves are known for reliability, fast response, and compatibility with a wide range of pneumatic control systems. They are available in both monostable and bistable configurations and can be mounted on individual or manifold bases.

SKU: 05VS Category: Solenoid valves

Available Options

SKU	Ways	Actuation	Function	Size	Stock	Price	Quantity

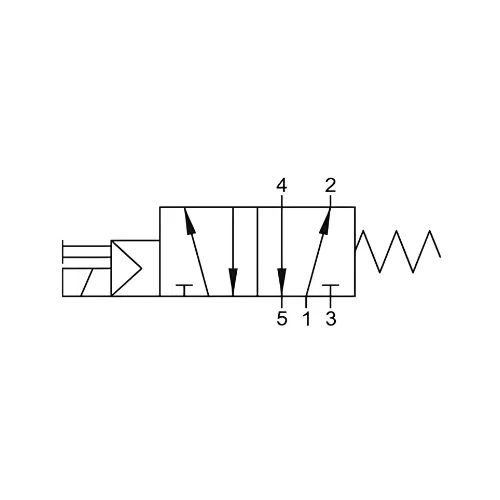

05VS050000	5/2	Solenoid / Spring Return	-	18 mm VDMA 24 V DC	Availability: 4 in stock	$240.73 +gst	Solenoid Pilot 18mm VDMA Valve 24V DC quantity

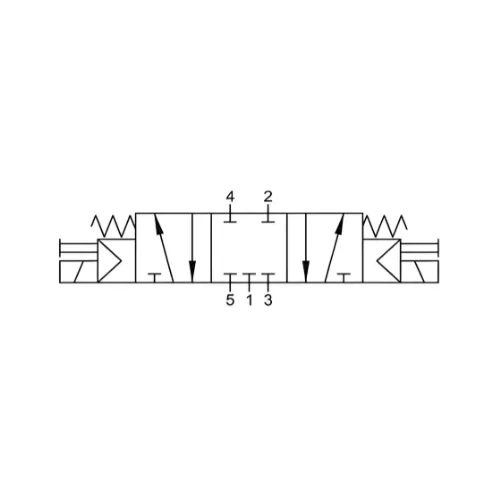

05VS07CC00	5/3	Solenoid / Spring Return	All Ports Blocked	18 mm VDMA 24 V DC	Availability: 3 in stock	$453.18 +gst	Solenoid Pilot 18mm VDMA Valve 24V DC quantity

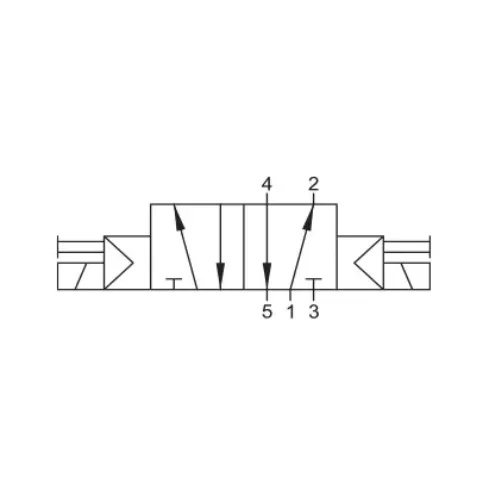

05VS150000	5/2	Double Solenoid	-	18 mm VDMA 24 V DC	Availability: 4 in stock	$385.08 +gst	Solenoid Pilot 18mm VDMA Valve 24V DC quantity

Technical Specifications:

Configuration: 3/2, 5/2, or 5/3 ways
Mounting interface: VDMA 18 mm
Flow rate (6 bar Δp1): Up to 800 Nl/min
Operating pressure: 2–8 bar
Temperature range: -10°C to +60°C
Actuation: Solenoid, pneumatic, or manual override
Electrical coils: 12V DC, 24V DC, 24V AC, 110V AC, 230V AC
Body material: Anodised aluminium
Seals: NBR
Medium: Filtered and lubricated compressed air
Applications:
- Automation and machinery control
- Compact multi-valve manifolds
- Systems requiring standardised VDMA interchangeability

Ways	5/2, 5/3, 5/2
Actuation	Solenoid / Spring Return, Solenoid / Spring Return, Double Solenoid
Function	-, All Ports Blocked, –
Size	18 mm VDMA 24 V DC, 18 mm VDMA 24 V DC, 18 mm VDMA 24 V DC
