Solenoid valves

Solenoid Pilot Valve

Name: Solenoid Pilot Valve
SKU: 01VS
Availability: InStock

Price range: $148.53 through $648.61 +gst

The Aignep 01V Series solenoid valves provide reliable pneumatic control with a compact, modular design. Built for versatility, they can be used as direct or pilot-operated versions, in monostable or bistable configurations, and in 3/2, 5/2, or 5/3 ways. These valves are ideal for industrial automation systems where precise air control and long service life are critical.

SKU: 01VS Category: Solenoid valves

Available Options

SKU	Ways	Actuation	Function	Size	Stock	Price	Quantity

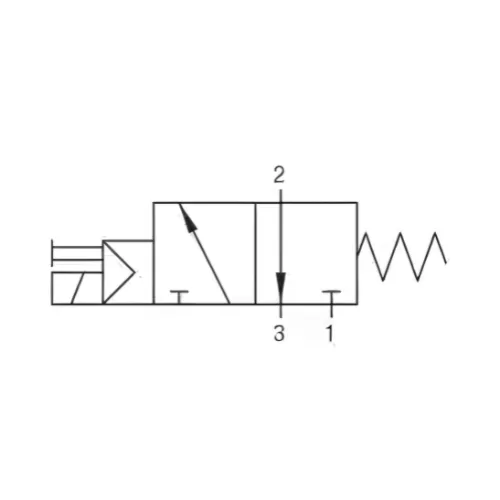

01VS03NC02	3/2	Solenoid / Spring Return	NC	1/8"	Availability: 6 in stock	$148.53 +gst	Solenoid Pilot Valve quantity
01VS03NC03	3/2	Solenoid / Spring Return	NC	1/4"	Out of stock	$156.79 +gst	Solenoid Pilot Valve quantity
01VS03NC04	3/2	Solenoid / Spring Return	NC	3/8"	Availability: 1 in stock	$192.84 +gst	Solenoid Pilot Valve quantity
01VS03NC05	3/2	Solenoid / Spring Return	NC	1/2"	Availability: 4 in stock	$407.61 +gst	Solenoid Pilot Valve quantity

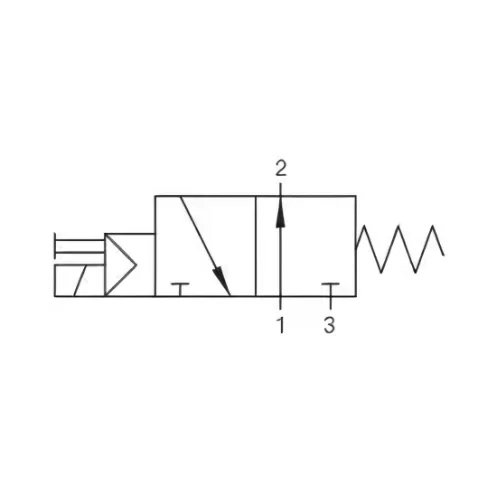

01VS03NO02	3/2	Solenoid / Spring Return	NO	1/8"	Availability: 3 in stock	$148.93 +gst	Solenoid Pilot Valve quantity
01VS03NO03	3/2	Solenoid / Spring Return	NO	1/4"	Availability: 1 in stock	$156.79 +gst	Solenoid Pilot Valve quantity
01VS03NO05	3/2	Solenoid / Spring Return	NO	1/2"	Availability: 1 in stock	$407.61 +gst	Solenoid Pilot Valve quantity

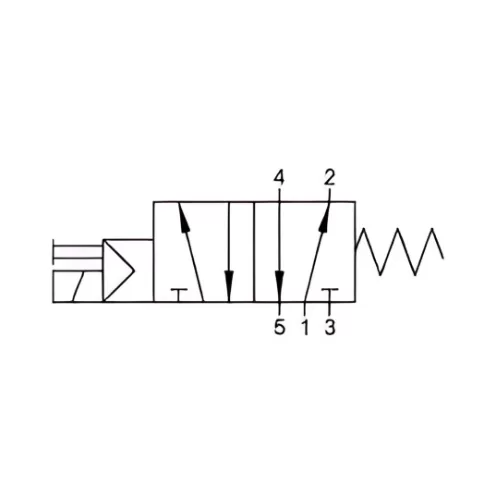

01VS050002	5/2	Solenoid / Spring Return	-	1/8"	Availability: 5 in stock	$163.73 +gst	Solenoid Pilot Valve quantity
01VS050003	5/2	Solenoid / Spring Return	-	1/4"	Availability: 25 in stock	$180.22 +gst	Solenoid Pilot Valve quantity
01VS050004	5/2	Solenoid / Spring Return	-	3/8"	Availability: 3 in stock	$217.41 +gst	Solenoid Pilot Valve quantity
01VS050005	5/2	Solenoid / Spring Return	-	1/2"	Availability: 1 in stock	$332.58 +gst	Solenoid Pilot Valve quantity

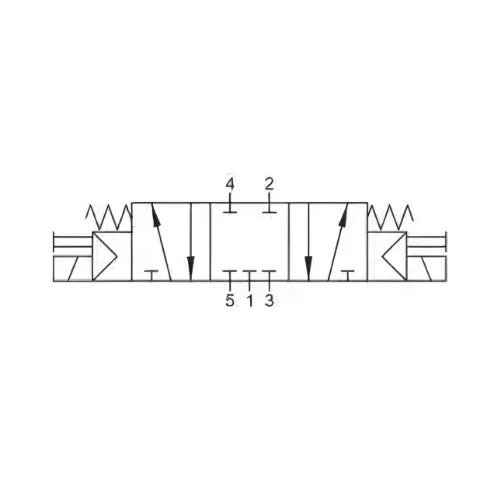

01VS07CC03	5/3	Solenoid / Spring Return	All Ports Blocked	1/4"	Availability: 3 in stock	$313.82 +gst	Solenoid Pilot Valve quantity
01VS07CC05	5/3	Solenoid / Spring Return	All Ports Blocked	1/2"	Availability: 4 in stock	$648.61 +gst	Solenoid Pilot Valve quantity

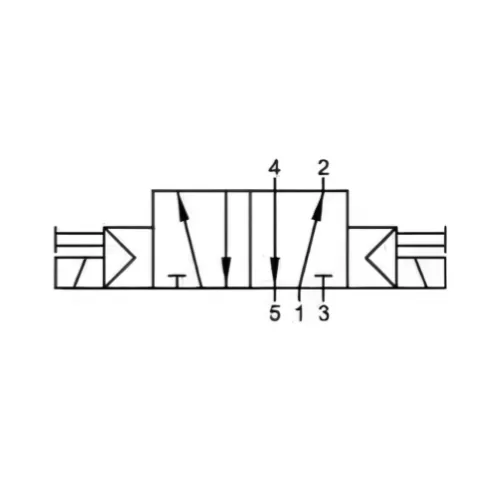

01VS150002	5/2	Double Solenoid	-	1/8"	Availability: 2 in stock	$255.81 +gst	Solenoid Pilot Valve quantity
01VS150003	5/2	Double Solenoid	-	1/4"	Out of stock	$256.45 +gst	Solenoid Pilot Valve quantity
01VS150005	5/2	Double Solenoid	-	1/2"	Availability: 3 in stock	$516.98 +gst	Solenoid Pilot Valve quantity

Technical Specifications:

Port sizes: G1/8, G1/4, G3/8, G1/2
Flow rate (at 6 bar Δp1): 740 Nl/min (G1/8), 1200 Nl/min (G1/4), 2000 Nl/min (G3/8), 5000 Nl/min (G1/2)
Operating pressure:
- Monostable spring return: 2–10 bar
- Pneumatic return: 2–10 bar
- Bistable: 1–10 bar
Operating temperature: -10°C to +60°C
Body: Anodised aluminium, painted on G1/8–G1/2
Spool: Nickel-plated aluminium
Seals: NBR
Electrical coils: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Power consumption: 2W (DC) / 3VA (AC)
Mounting: Sub-base or individual ports
Standards: PED 2014/68/EU, ATEX 2014/34/EU
Applications: Pneumatic control panels, automation machinery, air actuation systems

Ways	3/2, 3/2, 3/2, 3/2, 3/2, 3/2, 3/2, 5/2, 5/2, 5/2, 5/2, 5/3, 5/3, 5/2, 5/2, 5/2
Actuation	Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Solenoid / Spring Return, Double Solenoid, Double Solenoid, Double Solenoid
Function	NC, NC, NC, NC, NO, NO, NO, -, -, -, -, All Ports Blocked, All Ports Blocked, -, -, –
Size	1/8", 1/4", 3/8", 1/2", 1/8", 1/4", 1/2", 1/8", 1/4", 3/8", 1/2", 1/4", 1/2", 1/8", 1/4", 1/2"
