The 21IZ Series is engineered for high flow performance with an optimized body design that minimizes water hammer effects. Built with a corrosion-resistant stainless steel body, this valve ensures long service life and dependable operation. It features a self-adjusting stem packing, an optical position indicator, and a pneumatic actuator that can be freely rotated 360° for flexible installation in any orientation.
Angle seat valves, Solenoid valves

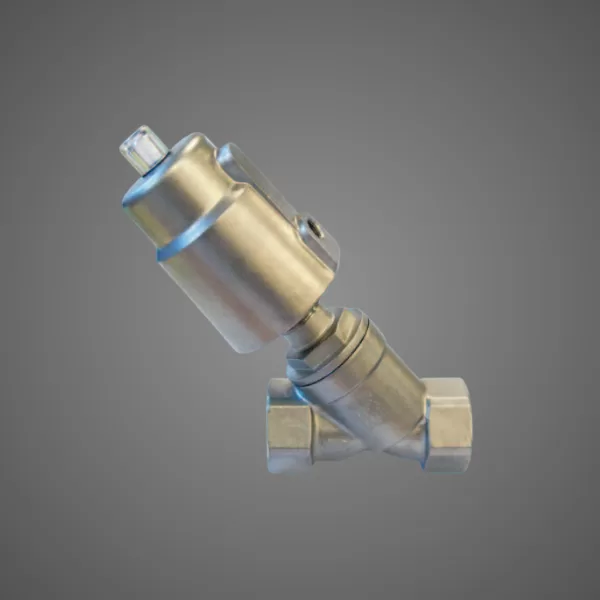

Stainless Steel Angle Seat Valve N.C.
Price range: $453.84 through $1,599.36 +gst
Port Sizes: 1/2″, 3/4″, 1″, 1 1/2″, 2″; Ø Orifice: 13–45 mm; Kv Flow Rate: 59–660 l/min; Actuator Pilot Pressure: 4–8 bar; Max Allowable Pressure: 16–20 bar; Medium: Fluids, Gases, Vapours (Neutral, Aggressive); Fluid Viscosity: max 600 cSt
Available Options
| Thumbnail | SKU | Port Size | Position | Standard | Body Material | Stock | Price | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
 | 21IZ1CS1BTTO152BP | 1/2" | NC | ISO 228/1 | Stainless Steel AISI 315 | Availability: 3 in stock | $453.84 +gst | ||
| 21IZ1DS1BTT0202BP | 3/4" | NC | ISO 228/1 | Stainless Steel AISI 315 | Availability: 1 in stock | $590.06 +gst | ||
| 21IZ1ES1BTT025 | 1" | NC | ISO 228/1 | Stainless Steel AISI 315 | Availability: 1 in stock | $726.14 +gst | ||
| 21IZ1FS1BTT0402BP | 1 1/2" | NC | ISO 228/1 | Stainless Steel AISI 315 | Availability: 2 in stock | $1,122.21 +gst | ||
| 21IZ1FS1BTT0502BP | 2" | NC | ISO 228/1 | Stainless Steel AISI 315 | Availability: 1 in stock | $1,599.36 +gst |
| Port Size | 1/2", 3/4", 1", 1 1/2", 2" |
|---|---|
| Position | NC, NC, NC, NC |
| Standard | ISO 228/1, ISO 228/1, ISO 228/1, ISO 228/1 |
| Body Material | Stainless Steel AISI 315, Stainless Steel AISI 315, Stainless Steel AISI 315, Stainless Steel AISI 315 |
