Quick Connect Fittings
Quick connect fittings, also known as quick couplers are designed to make connecting and disconnecting compressed air lines fast, safe, and efficient. At ATS Pneumatics Ltd, we are proud to be Christchurch’s largest stockist of pneumatic fittings, supplying a complete range of ARO style compatible couplers and inserts trusted in workshops and industries across New Zealand.
Our quick couplers are engineered for heavy-duty industrial applications, combining durability with ease of use.
Why Choose Quick Connect Fittings?
Rapid changeovers – connect or disconnect air tools in seconds.
Leak-free performance – precision-engineered seals reduce air loss.
Durable materials – nickel-plated brass and stainless steel resist corrosion in harsh environments
Universal compatibility – all of our couplers are ARO-style compatible, including profiles such as European, Italian, Swiss, and Japanese.
Safety options – We also supply safety couplings designed to vent pressure before disconnection, protecting operators.
Common Applications
Quick connect fittings are essential across industries such as:
Automotive workshops – fast tool changeovers for impact wrenches, grinders, and sprayers.
Transport & bus maintenance – ensuring safe and efficient pneumatic servicing.
Industrial manufacturing – supplying air to cylinders, valves, and machinery.
Construction – powering nailers, drills, and compressed-air site equipment.
General compressed air systems – making line management faster and safer.
Our Range of Quick Couplers
At ATS Pneumatics, we stock a complete range of quick couplers to suit New Zealand industries. All of our couplers are ARO-style compatible and designed for heavy-duty use in compressed air systems.

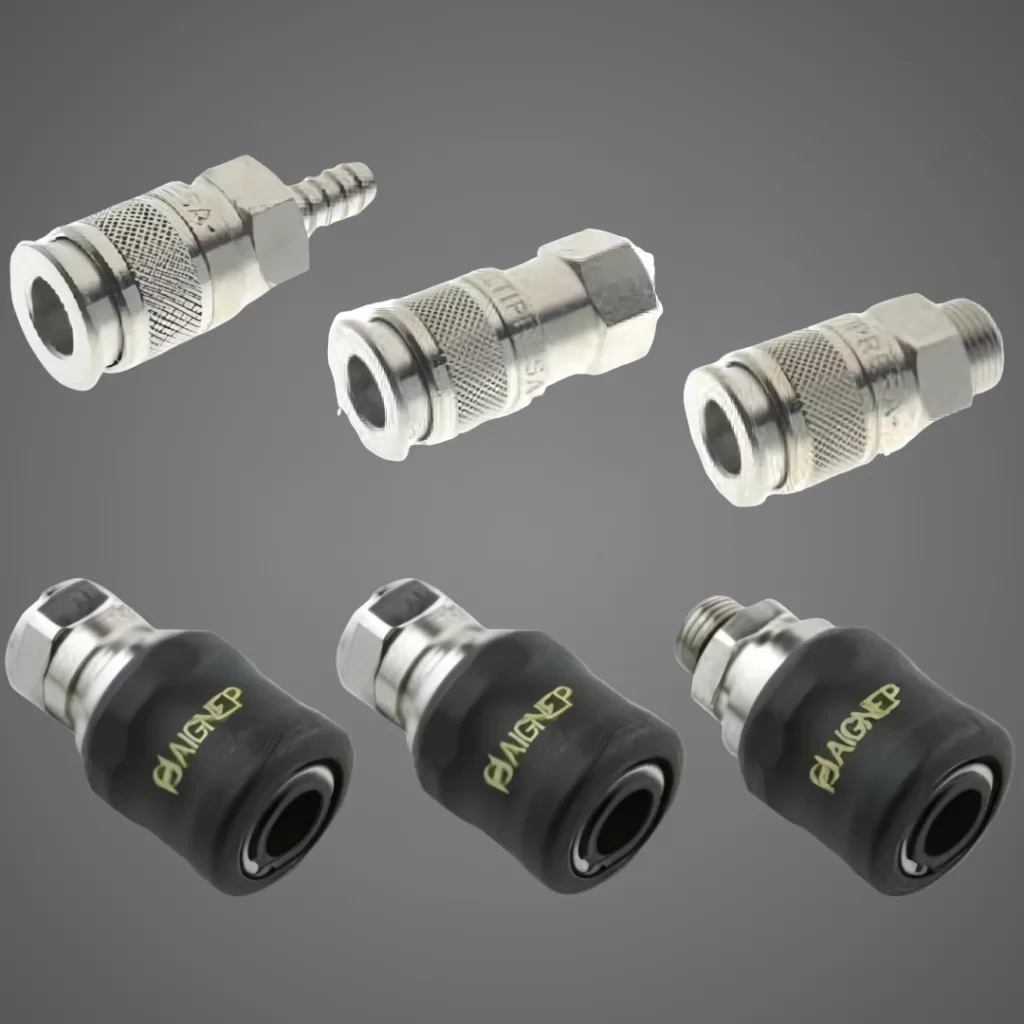

Our A210 range are dual couplers compatible with Aro and high flow inserts and is our go-to line for everyday pneumatic connections. European profile couplers available in male and female couplers and plugs for complete system flexibility.
-
Material options: Standard nickel-plated brass + stainless steel inserts, full steel, or full stainless steel for high-corrosion environments.
-
Connection options: Includes hosetail couplers for direct hose connection.
-
Sizes: 1/4″, 3/8″, 1/2″
-
Working pressure: Up to 16 bar
-
Flow rate: Up to 2,250 Nl/min (at 6 bar Δ0.5)
-
Applications: Automotive workshops, transport maintenance, general compressed air setups.

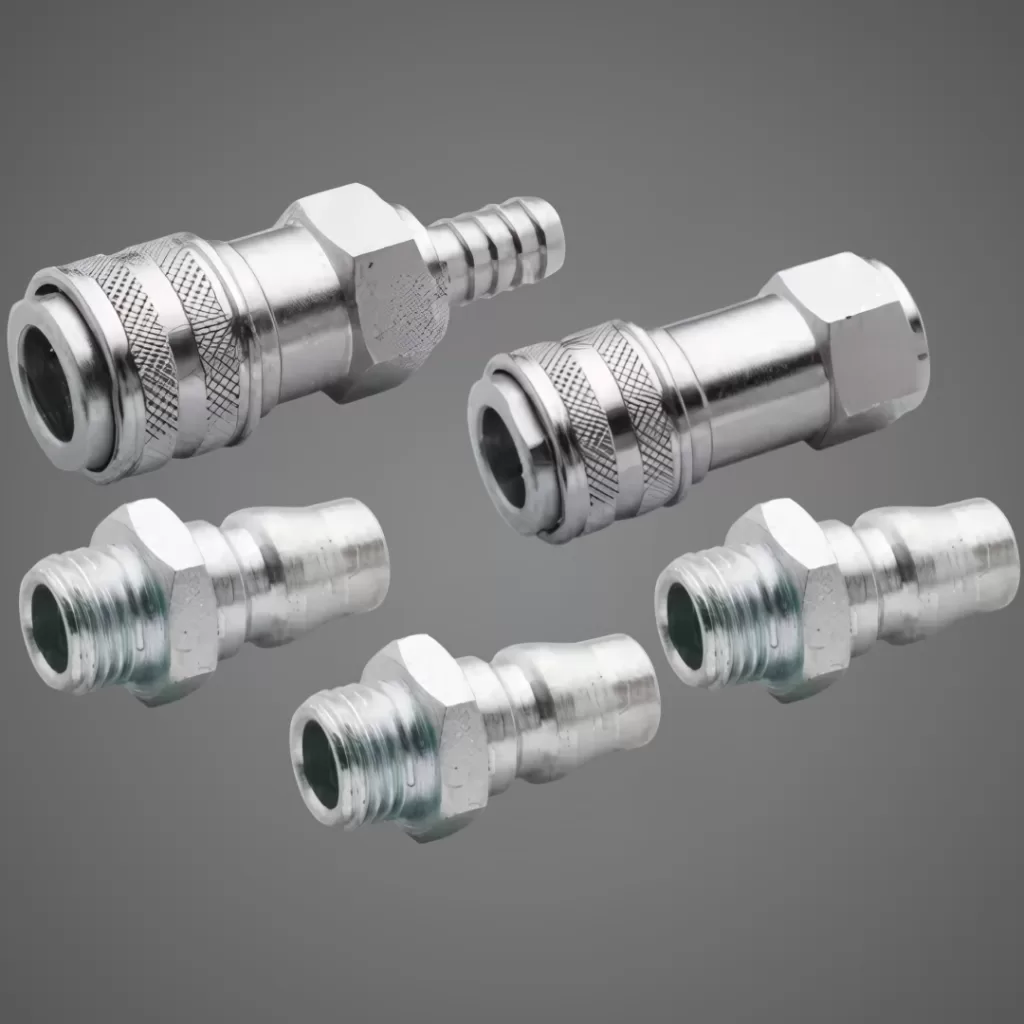

The A380 range matches the Japanese profile. These couplers are designed for higher airflow capacity, making them ideal where tools demand maximum performance.
- Material: Nickel-plated brass body with stainless steel locking balls and NBR seals
Variants: Male and female couplers, plus hosetail options for direct tube connections.
Sizes: 1/4″, 3/8″, 1/2″
Working pressure: Up to 25 bar
Flow rate: Approx. 2,050 Nl/min (at 6 bar Δ0.5)
Applications: Spray painting, impact tools, industrial machinery requiring uninterrupted air supply.
- Material: Nickel-plated brass body with stainless steel locking balls and NBR seals
The A400 range is our heavy-duty ISO B-17 compatible quick coupling line, designed for robust industrial environments and high-demand pneumatic systems.
Available types: Standard Coupler, Safety Coupler, Male Insert and Female Insert
Size: 1/2″
Material: Nickel-plated brass body with stainless steel locking balls and NBR seals
Working pressure: Up to 16 bar
Flow rate: 3,200 Nl/min (at 6 bar Δ0.5)
Applications: High-demand pneumatic systems, transport workshops, and industrial machinery requiring robust, metric-thread couplings

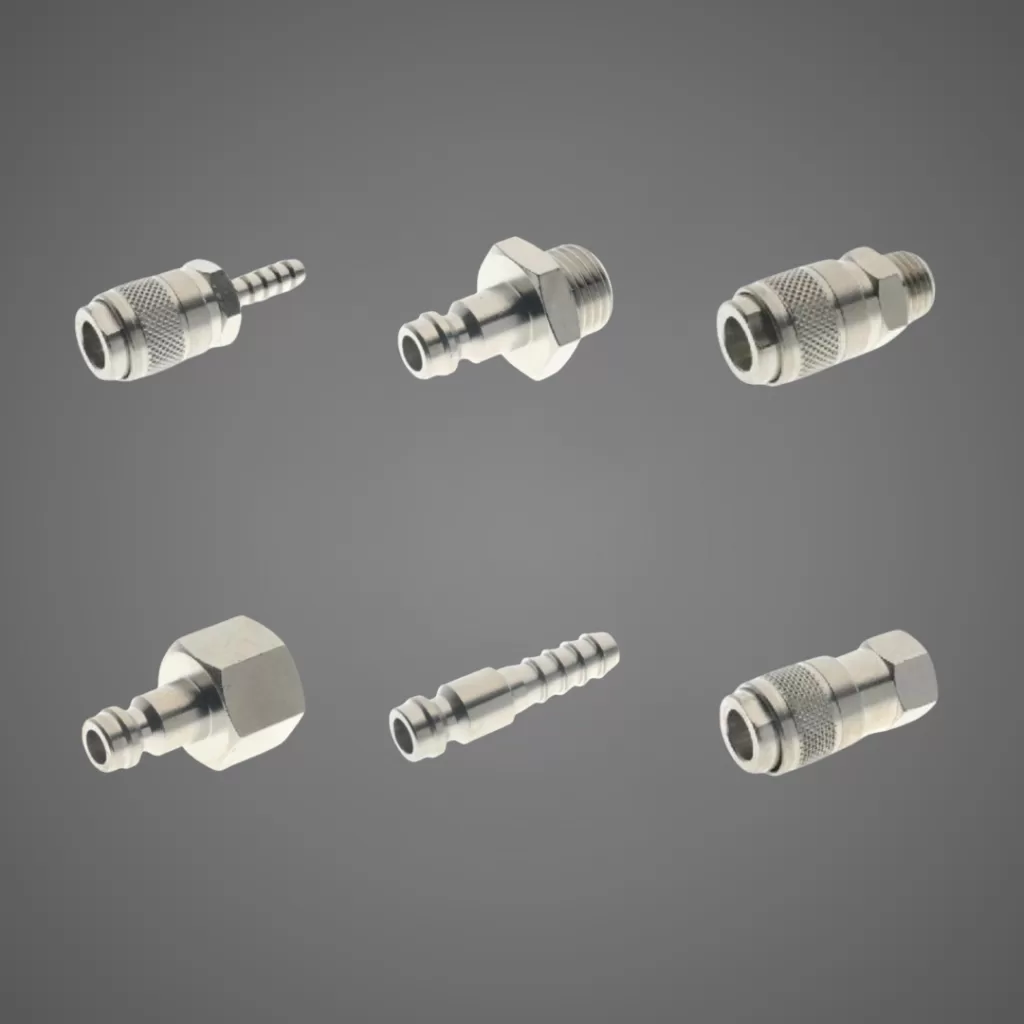

Our Mini couplers are the perfect choice for smaller tools and installations where space is limited.
Sizes: 1/8″, 1/4″, 3/8″
Material: Nickel-plated brass with stainless steel locking balls and NBR seals
Working pressure: Up to 12 bar
Flow rate: Up to 1,100 Nl/min (at 6 bar Δ0.5)
Applications: Light pneumatic tools, portable systems, confined spaces.

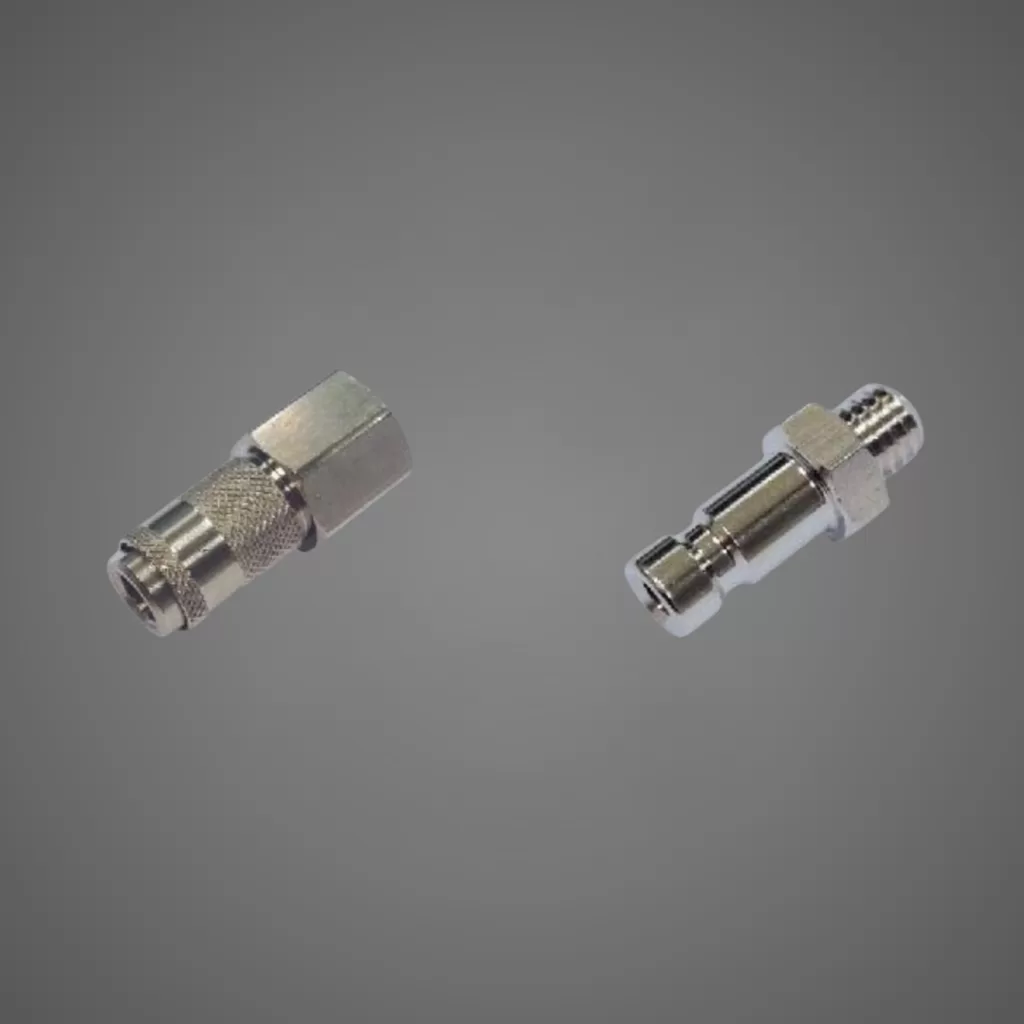

Our Micro couplers are ultra-lightweight fittings designed for small pneumatic systems.
Sizes: M5, 1/8″
Material: Nickel-plated brass with stainless steel locking balls
Working pressure: Up to 12 bar
Flow rate: Up to 235 Nl/min (at 6 bar Δ1)
Applications: Laboratory setups, automation equipment, and precision pneumatic tools.
The Giant Coupler range delivers extreme performance where high flow is required.
Size: 1/2″ only
Material: Tempered steel body
Working pressure: Up to 20 bar
Flow rate: 2,500 Nl/min (at 6 bar)
Applications: Large-scale pneumatic systems, hose-to-hose connections, transport and heavy machinery.

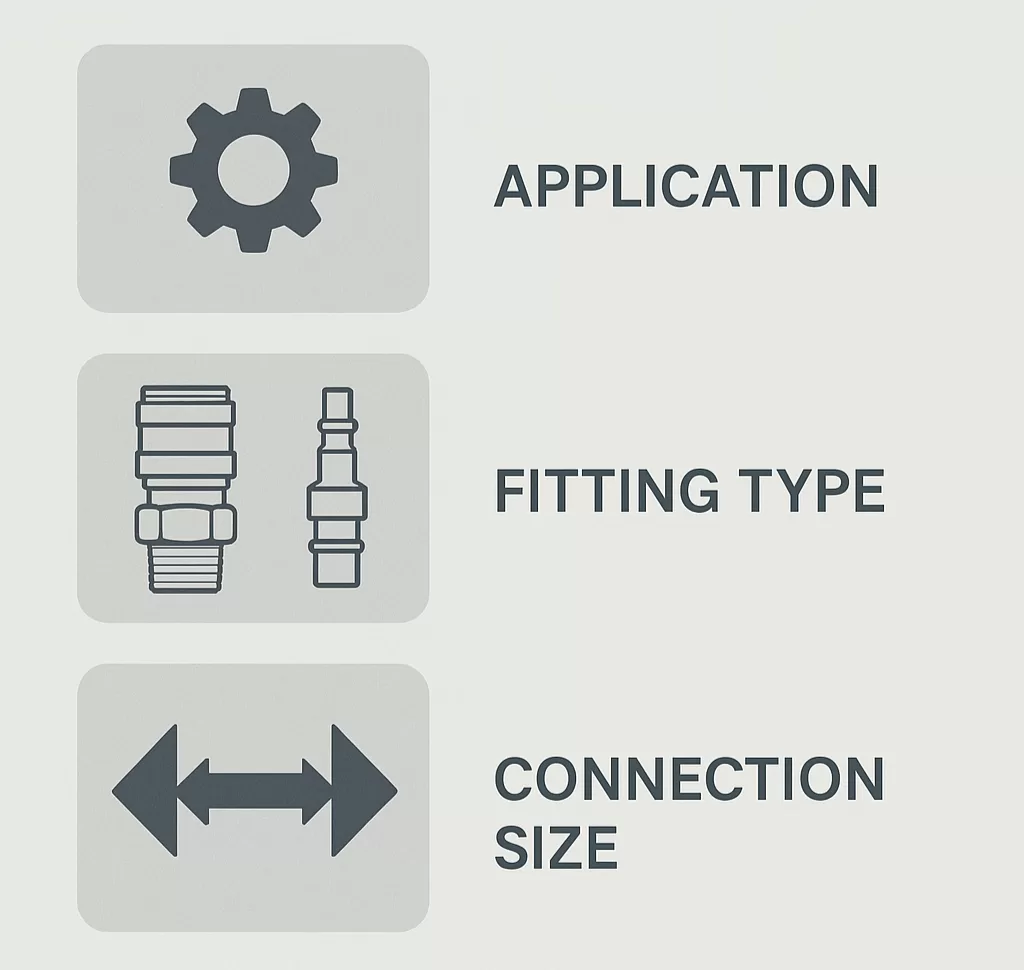

How to Select the Right Quick Couplers
Choosing the correct quick connect fitting ensures safety, efficiency, and compatibility:
-
-
Identify the profile – European, Japanese, Italian, Swiss, or ISO. All of our ranges are are ARO compatible, but sockets and plugs must still match.
-
Check the flow requirements – larger DN sizes provide higher airflow.
-
Match socket and plug sizes – both must be from the same series/profile.
-
Consider safety couplers – where venting before disconnection is critical.
-
Ask ATS – our team can confirm the right product for your application.
-
Why Choose ATS Pneumatics
Christchurch’s largest pneumatic stockist – fittings, tube, actuators, valves, and more.
Authorised Aignep distributor – quality guaranteed.
Universal ARO compatibility across all couplers.
Trusted by workshops and industries across NZ.
Local expertise and support to help you choose the right couplers for your application.
