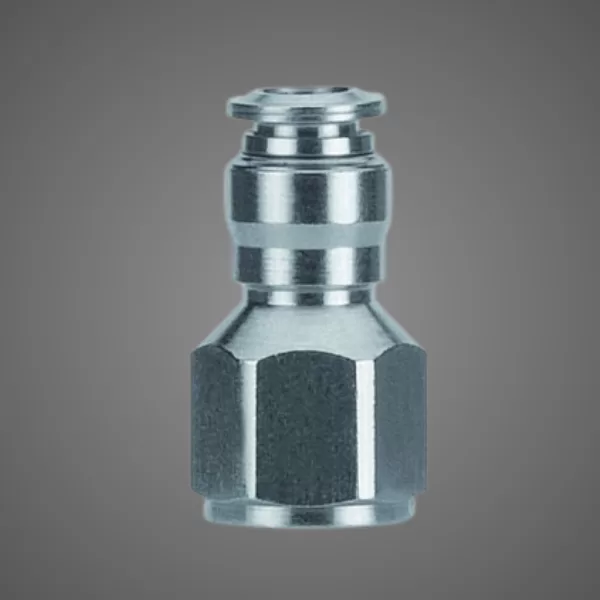

Female Straight Adaptor

Name: Female Straight Adaptor
SKU: MCF
Availability: InStock

Price range: $7.57 through $16.23 +gst

Nick Plated Brass Heavy-Duty Fitting
Fluids – Compressed air / Vacuum / Water
Quick connection and disconnection
Temperature
– 20 °C
+ 80 °C
Pressures
– 0.99 bar (-0.099 MPa)
20 bar (2.0 MPa)
ISO – 14743:2020

SKU: MCF Category: Push Fit Fittings

Available Options

SKU	Tube - Thread Size	Stock	Price	Quantity
MCF-04-01	4mm - 1/8BSP	Availability: 19 in stock	$7.57 +gst	Female Straight Adaptor quantity
MCF-04-02	4mm - 1/4BSP	Availability: 15 in stock	$7.57 +gst	Female Straight Adaptor quantity
MCF-04-M5	4mm - M5	Availability: 11 in stock	$7.57 +gst	Female Straight Adaptor quantity
MCF-06-01	6mm - 1/8BSP	Availability: 27 in stock	$7.57 +gst	Female Straight Adaptor quantity
MCF-06-02	6mm - 1/4BSP	Availability: 10 in stock	$8.53 +gst	Female Straight Adaptor quantity
MCF-08-01	8mm - 1/8BSP	Availability: 10 in stock	$8.53 +gst	Female Straight Adaptor quantity
MCF-08-02	8mm - 1/4BSP	Availability: 34 in stock	$8.95 +gst	Female Straight Adaptor quantity
MCF-10-02	10mm - 1/4BSP	Availability: 12 in stock	$10.45 +gst	Female Straight Adaptor quantity
MCF-10-03	10mm - 3/8BSP	Availability: 9 in stock	$15.41 +gst	Female Straight Adaptor quantity
MCF-12-03	12mm - 3/8BSP	Availability: 10 in stock	$14.57 +gst	Female Straight Adaptor quantity
MCF-12-04	12mm - 1/2BSP	Availability: 12 in stock	$16.23 +gst	Female Straight Adaptor quantity

This full metal solution offers robust and high performances.
Mainly used in environments with strong vibrations, abrasions and welding sparks.
Applications
– Robotics
– Automotive
– Heavy Industry / Railways
– Compressed air Circuit
– Cooling water
– Vacuum

Tube - Thread Size	4mm – 1/8BSP, 4mm – 1/4BSP, 4mm – M5, 6mm – 1/8BSP, 6mm – 1/4BSP, 8mm – 1/8BSP, 8mm – 1/4BSP, 10mm – 1/4BSP, 10mm – 3/8BSP, 12mm – 3/8BSP, 12mm – 1/2BSP
